LPDDR6 Verification IP

The LPDDR6 Verification IP provides an effective & efficient way to verify the LPDDR6 components of an IP or SoC. The VIP is lightweight, featuring easy-to-use plug-and-play components, so there is no impact on the design cycle time.

• Supports LPDDR6 memory with all compliant vendors.
• Supports all LPDDR6 densities up to 48 Gb.
• Supports x12 DQ and 24 burst length (256 bits of data 32 bits of – not data)
• LPDDR6 Introductory data rate – 10.667 Gbps
• LPDDR6 Highest defined data rate – 14.4 Gbps (double LPDDR5)
• LPDDR6 introductory bandwidth – 32 Gbps
• Support per-row activation counting PRAC
• Four bank groups per sub-channel, four banks per bank group
• Support ALERT (new) signals per channel
• Support metadata 16 bit (Host ECC, EDC, and Memory tagging) (LP6 co DMI)
• Support RAS Focused (16 bits) – Link Protection
• Supports all LPDDR6 mode registers
• Supports Direct refresh management
• Supports capturing of all the valid LPDDR6 commands as per the specs
• Constantly monitors LPDDR6 flow during simulation
• Supports Programmable READ/WRITE Latency timings
• Support all LPDDR6 trainings
• Support for Power Down features
• Error injection is available for extensive failure testing
• Extensively detailed simulation & debug logs
• Error ID mechanism to show the spec section in the description of the obtained error
• Supports Constraint Randomization
• Callbacks in the host device for user processing of data
• Complete test suite to verify each feature of the LPDDR6 standard
• Built-in Coverage Analysis
• Graphical analyzer for easy debugging
• Transactions logger that prints all the logging information.
• Functional coverage for complete LPDDR6 features
• Monitors, detects, and notifies the testbench of significant events such as transactions, warnings, timing, and protocol violations

• Available in native SystemVerilog (UVM/OVM/VMM) and Verilog.
• Unique development methodology to ensure highest levels of quality.
•  Availability of Compliance & Regression Test Suites
• 24X5 customer support
• Unique and customizable licensing models.
• Exhaustive set of assertions and cover points with connectivity example for all the components.
• Consistency of interface, installation, operation and documentation across all our VIPs.

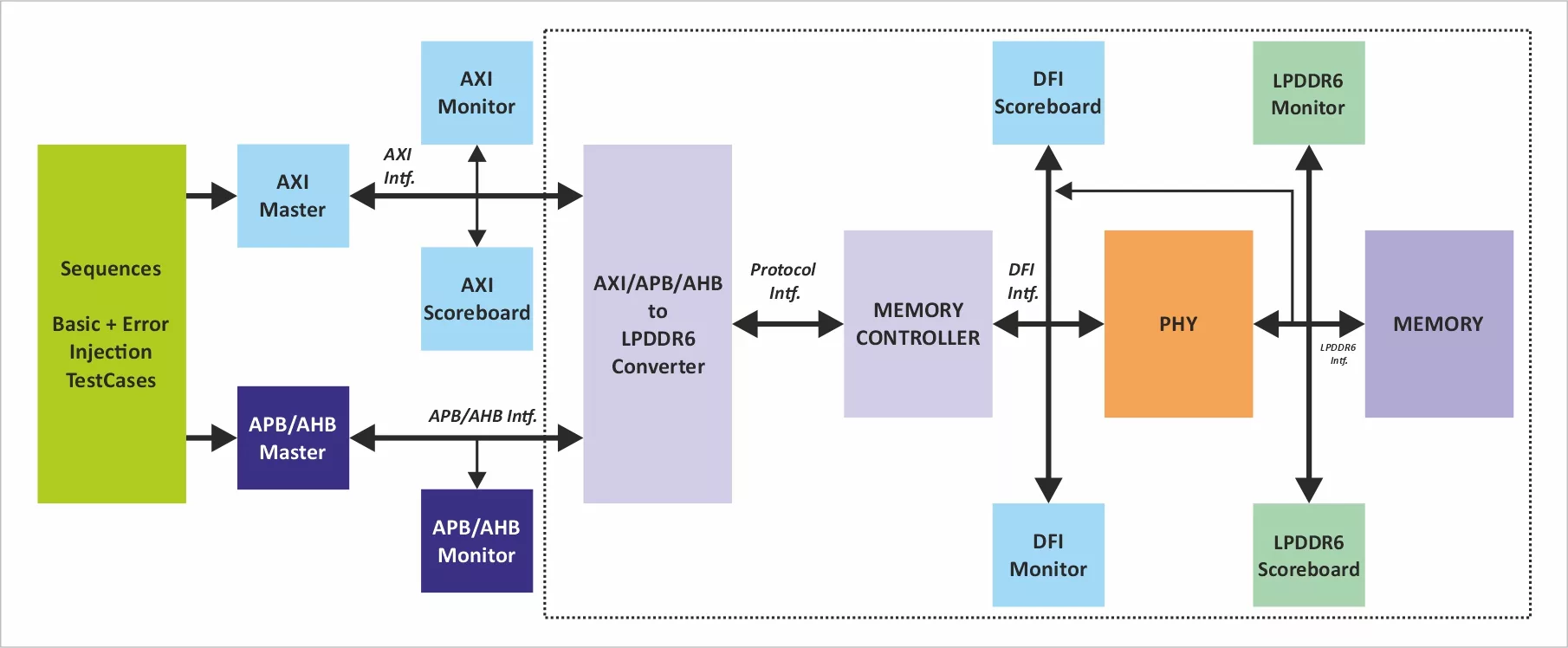

• Provide complete solution and easy integration in IP and SoC environment

• LPDDR6 Functional memory controller BFM/Agent
• LPDDR6 SDRAM Model
• LPDDR6 Monitor and Scoreboard
• LPDDR6 PHY BFM Model
• LPDDR6 PHY Monitor and Scoreboard
• Test Environment & Test Suite:
  • Basic Directed Tests
  • Random Tests
  • Error Injection Tests
  • Assertions & Cover Point Tests
• Integration Guide, User Manual and Release Notes
