Low Power PLL for TSMC 40nm ULP

The OT3135 is a flexible low power clock multiplier PLL function with a wide range of input and output frequencies, and is design…

Contact Provider Request Datasheet
TSMC 40nm ULP eFlash Silicon Proven View all specifications

Overview

The OT3135 is a flexible low power clock multiplier PLL function with a wide range of input and output frequencies, and is designed for TSMC 40nm, ULP CMOS processes.


Key features

  • Wide range M, P, and N integer dividers.
  • 40MHz – 600MHz output frequency range.
  • Input frequency range 1.4MHz – 32MHz.
  • 15pS RMS cycle to cycle jitter.
  • Lock-detect function.
  • Optional bypass function.
  • Level shifted IO.
  • Well-defined, fast startup behavior.
  • -40°C to 125°C temperature operation.
  • Small area: 0.03mm2 in 40nm CMOS.
  • 100µW typical power dissipation.
  • 0.82-1.1V digital and analog supplies.
  • Silicon proven.

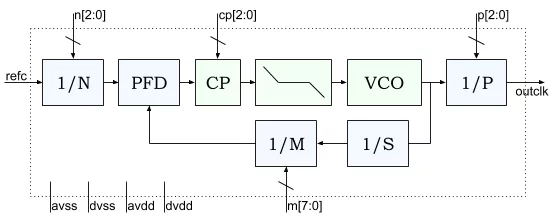

Block Diagram

OT3135 block diagram

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Silicon Options

Foundry Node Process Maturity
TSMC 40nm ULP eFlash Silicon Proven

Specifications

Identity

Part Number
OT3135
Vendor
Obsidian Technology

Provider

Obsidian Technology
HQ: USA
About Obsidian Technology
  • Founded 1995
  • Privately owned consulting company
  • Diversified customer base
  • Self funded
About Obsidian IP
  • Early delivery of front-end models.
  • On-site support available, including transfer of source to your design environment.
  • Available on-site design review.
  • On-site training for source licensing.
  • Option to take ip though your own quality and review processes.
  • Characterization support.
  • Fast and flexible legal. We typically accept your standard bi-directional NDA.
  • Simple plain-language contracts.
Contact Obsidian Technology
