50MHz to 800MHz Integer-N RC Phase-Locked Loop on SMIC 55nm LL

055SMIC_PLL_01 forms clock output signal with frequency from 50 to 800MHz.

Contact Provider Request Datasheet
SMIC 55nm LL Silicon Proven View all specifications

Overview

055SMIC_PLL_01 forms clock output signal with frequency from 50 to 800MHz. It consists of the ring VCO with frequency from 400 to 800MHz, a programmable feedback divider, a low noise digital phase noise detector (PFD), a precision charge pump (CP) with internal loop filter, lock detector (LD) and programmable clock divider to obtain a required output frequency. LO output signal is CMOS compatible.

Silicon area: 0.018 mm2.

ELECTRICAL CHARACTERISTICS

Parameter

Symbol

Condition

Value



Unit

min

typ.

max

Supply voltage

VVCC12

-

1.08

1.2

1.32

V

Temperature range

Tj

-

-40

25

125

ºС

VCO control voltage

Vctrl

-

0.1

-

1.05

V



Current consumption



IVCC12

Fout = 400MHz

-

190

250



uA

Fout = 800MHz

-

335

470

Reference current

Iref_1uA

-

-

1

-

uA

Current consumption in standby mode



Istb



-



-



0.04



11.5



uA

Reference signal logic-level high



VRefH





CMOS



0.8*VVCC12



-



VVCC12





V

Reference signal logic-level low



VRefL



0



-



0.2

Input logic-level high

VIH_VCC12

For digitalinputs

0.8*VVCC12

-

VVCC12



V

Input logic-level low

VIL_VCC12

0

-

0.2

Output logic-level high

VOH_VCC12

For digital outputs

0.8*VVCC12

-

VVCC12



V

Output logic-level low

VOL_VCC12

0

-

0.2

VCO frequency

FVCO

-

400

-

800

MHz

Output frequency

FLO

-

50

-

800

MHz

LO duty cycle

DCLO

-

40

50

60

%



Phase noise



PNLO

FLO = 400MHz at 1MHz

-

-96.2

-



dBc/Hz

FLO = 800MHz at 1MHz

-

-92.5

-

Reference frequency

Fref

-

4

6

20

MHz

Reference clock duty cycle



DCref



-



40



50



60



%

Comparison frequency

Fcomp

-

4

-

20

MHz

Lock time

Tlock

-

-

9

14

us

Lock detector accuracy

Serr

-

15

20

27

ns

Lock monitoring period

MP

Tcomp = 1/Fcomp

-

32*Tcomp

-

us

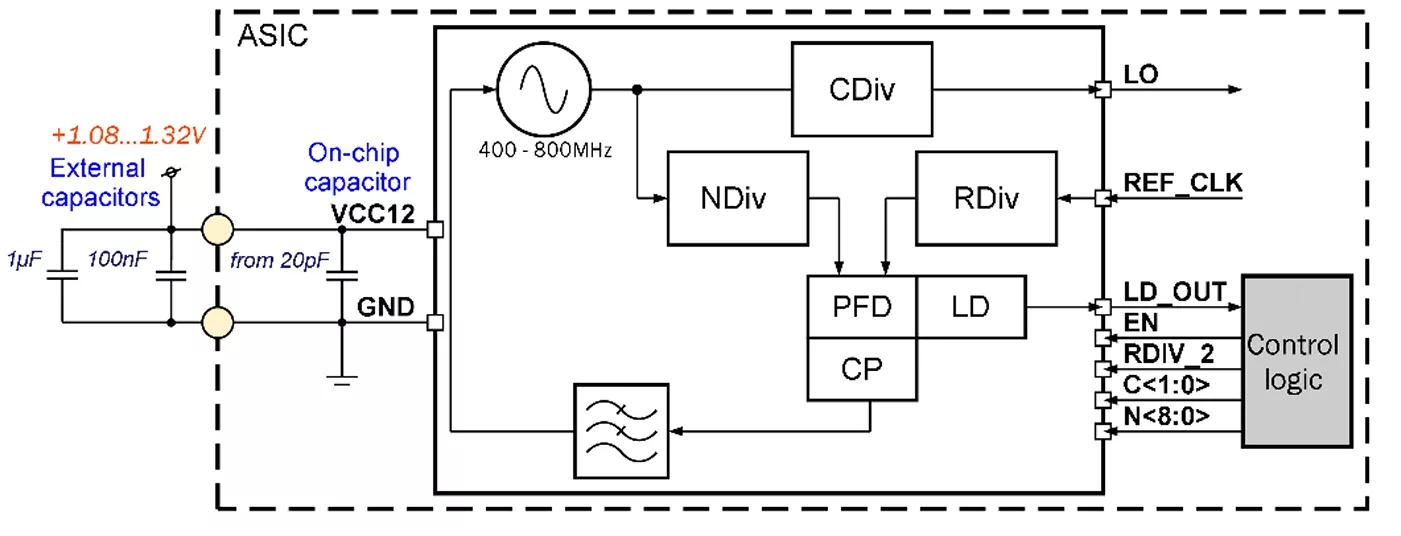

Block Diagram

055SMIC_PLL_01 block diagram
