1 to 50 MHz phase-locked loop frequency synthesizer

055TSMC_PLL_03 is a PLL frequency synthesizer that generates two clock signals in the range from 1 MHz to 50MHz.

Contact Provider Request Datasheet
TSMC 55nm GP Silicon Proven View all specifications

Overview

055TSMC_PLL_03 is a PLL frequency synthesizer that generates two clock signals in the range from 1 MHz to 50MHz. The synthesizer consists of one voltage-controlled oscillator (VCO) with internal LC circuit and automatic subband selection system; a digital phase frequency detector (PFD); a precision charge pump (CP) with integrated adjustable loop filter; a programmable divider of reference signal; a system of programmable feedback dividers controlled by a delta-sigma modulator (DSM) and output signal dividers.

Key features

  • TSMC CMOS 55 nm
  • Output frequency range from 1 MHz to 50 MHz
  • Reference frequency range from 5 MHz to 50 MHz

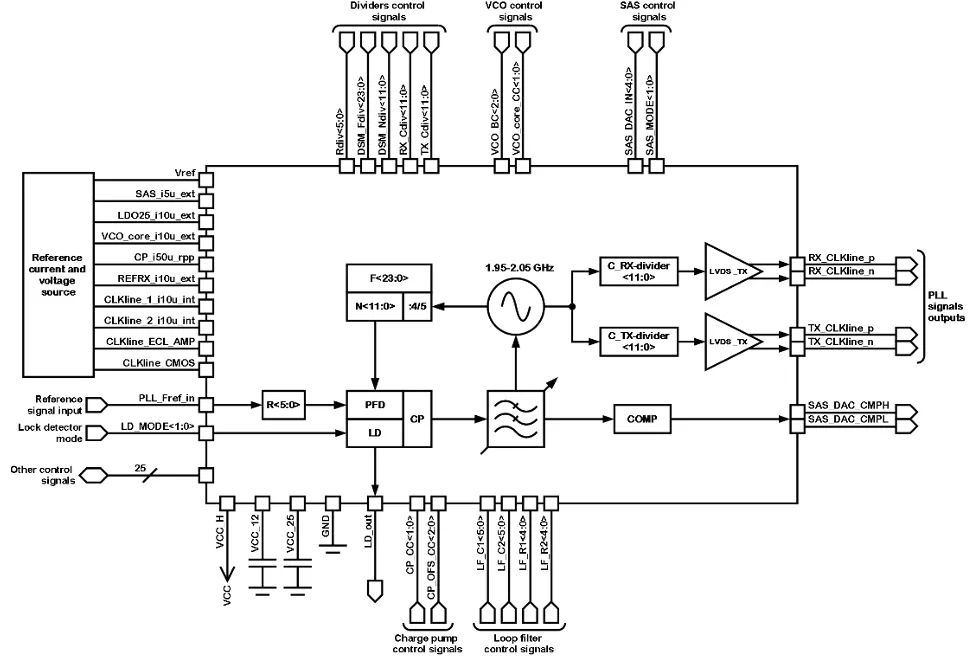

Block Diagram

055TSMC_PLL_03 block diagram

Applications

  • Frequency clock generation

What’s Included?

  • Schematic or NetList
  • Abstract model (.lef and .lib files)
  • Layout view (optional)
  • Behavioral model (Verilog)
  • Extracted view (optional)
  • GDSII
  • DRC, LVS, antenna report
  • Test bench with saved configurations (optional)
  • Documentation
