JESD204B UVM VIP

The vendor provides configurable JESD204B TX/RX verification IP.

Contact Provider Request Datasheet

Overview

The vendor provides configurable JESD204B TX/RX verification IP. JESD204B is a Serial Interface for Data Converters which are defined by JEDEC SOLID STATE TECHNOLOGY ASSOCIATION. Our VIP covers Transport and Data link layer functionality of JESD204B. The VIP provides more flexible configuration to user to select their needs like lane,device configuration, data width.

Key features

  • ADC - TX/RX DAC - TX/RX.
  • Support up to 12.5 Gbps data rate.
  • Support configurable device classification.
  • Support configurable subclass 0/1/2.
  • Support Frame alignment monitor and correction.
  • Support lane synchronization.
  • Support Lane alignment monitor and correction.
  • Support Link configuration.
  • Support Link re-initialization.
  • Support Deterministic Latency.
  • Support 8B/10B encode/decode.
  • Support Application specific control interface (user specific).

Block Diagram

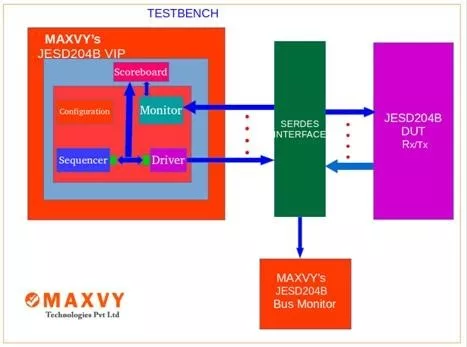

JESD204B UVM VIP block diagram

Benefits

  • Configurable Option like lane,frame,TX/RX.
  • Supports both multi device configuration.
  • Simple steps to integrate into customer environment

What’s Included?

  • Basic Test Suite.
  • Random Testbench Environment.
  • Encrypted Source Code of VIP.
  • VIP user guide.

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
JESD204B UVM VIP
Vendor
MAXVY Technologies Pvt Ltd

Provider

MAXVY Technologies Pvt Ltd
HQ: India
MAXVY is a fast growing company which is currently engaged in the fields of Semiconductor. We offer our services to shape your concept to products (Silicon Chips), which includes Embedded Product Design, RTL design and Verification, Analog and Mixed Signal System Design and Analysis, Physical Design etc...
Contact MAXVY Technologies Pvt Ltd

Learn more about JESD204 IP core

JESD204 Frame Mapping explained from converter samples to lanes
