Vendor: Truechip Solutions Category: IPsec / TLS

IPSec Verification IP

The IPSec Verification IP provides an effective & efficient way to verify the components interfacing with Ethernet interface of a…

Contact Provider Request Datasheet

Overview

The IPSec Verification IP provides an effective & efficient way to verify the components interfacing with Ethernet interface of an IP or SoC. The IPSec Ethernet VIP is fully compliant with RFC-4301 specification. This VIP is lightweight with an easy plug -and- play interface so that there is no hit on the design cycle time.

Key features

  • Provides Ethernet fully compliant to 802.3-2018 supporting all media independent interfaces for (1/10/25/40/50/100/200/400/800 G)
  • Provides IPSec as per RFC-4301 specification
    • Supports Tunnel Mode and Transport Mode
    • Supports Authentication header (AH)
    • Supports Encapsulating Security Payload (ESP)
    • Supports Manual as well as automatic Key Exchange
    • Encodes and decodes Ip headers
    • Protects and validates ipSec using AES-GCM Cipher suites
    • Cryptographic protection
  • Supports clock data recovery(CDR).
  • Supports Ipv4, Ipv6 Pkts
  • Supports test pattern generation and checking.
  • Supports Management data Input/output registers.
  • Supports full-duplex operation.
  • Callback support in all Layers to provide user control.
  • Rich set of configuration and parameters.
  • Supports Dynamic as well as Static Error Injection scenarios.
  • Built-in Coverage analysis.
  • Graphical analyzer to show transactions for easy debugging

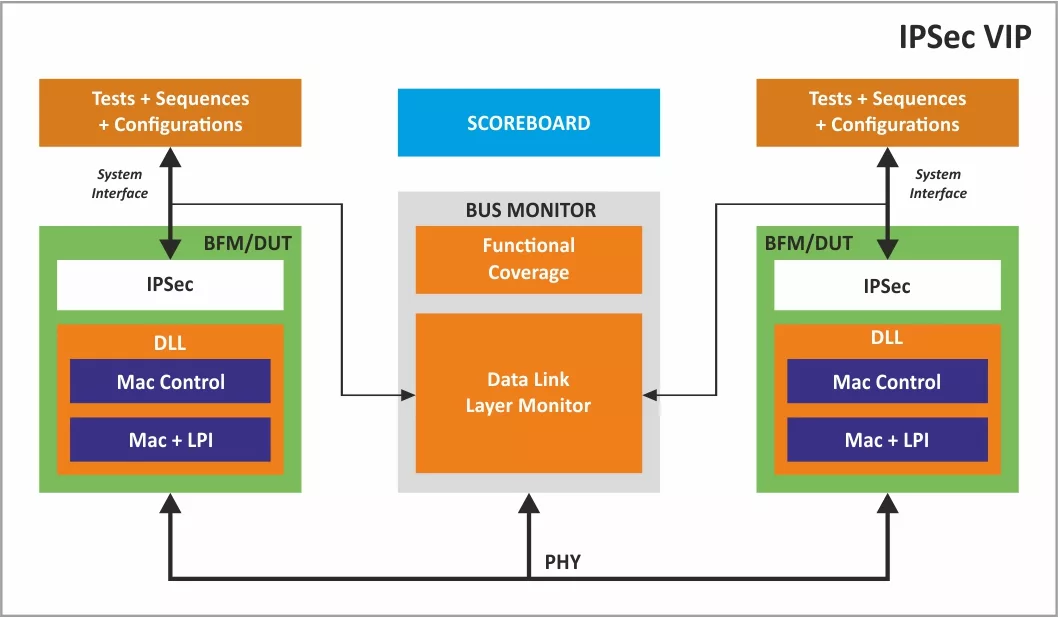

Block Diagram

IPSec block diagram

Benefits

  • Available in native System Verilog (UVM/OVM/ VMM) and Verilog
  • Unique development methodology to ensure the highest levels of quality
  • Availability of Compliance & Regression Test Suites
  • 24X5 customer support
  • Unique and customizable licensing models
  • Exhaustive set of assertions and coverage points with connectivity examples for all the components
  • Consistency of interface, installation, operation, and documentation across all our VIPs
  • Provide complete solutions and easy integration in IP and SoC environment

What’s Included?

  • Deliverables IPSec BFM's for
    • IPSec layer
    • MAC layer
    • Mac Control Layer
    • Mac transmits and receive
    • Mac Merge
  • IPSec and Mac monitors and scoreboard
  • Test environment and Test Suite-
    • Basic and Directed Protocol Tests
    • Random Tests
    • Error Scenario Tests
    • Assertions & Cover Point Tests
    • User Test Suite
  • Integration Guide, User Manual, and Release Note
  • GUI analyzer to view simulation packet Flow

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.
