Vendor: Brisbane Silicon Category: Single-Protocol PHY

DisplayPort 1.2a TX PHY targeting 28nm Artix-7

DisplayPort 1.2a compatible AMD/Xilinx hardware specific Hardware proven on AMD/Xilinx 28nm FPGA fabric Fabric: 28nm Artix-7 Tran…

Contact Provider Request Datasheet

Overview

  • DisplayPort 1.2a compatible
  • AMD/Xilinx hardware specific
  • Hardware proven on AMD/Xilinx 28nm FPGA fabric
    • Fabric: 28nm Artix-7
    • Transceivers: GTPE-2

Key features

  • Supported link rates of 1.62, 2.7 and 5.4 Gbps.
  • Hardware proven.
  • Simulation testbench.
  • Example project, including firmware which performs link initialization with the PHY

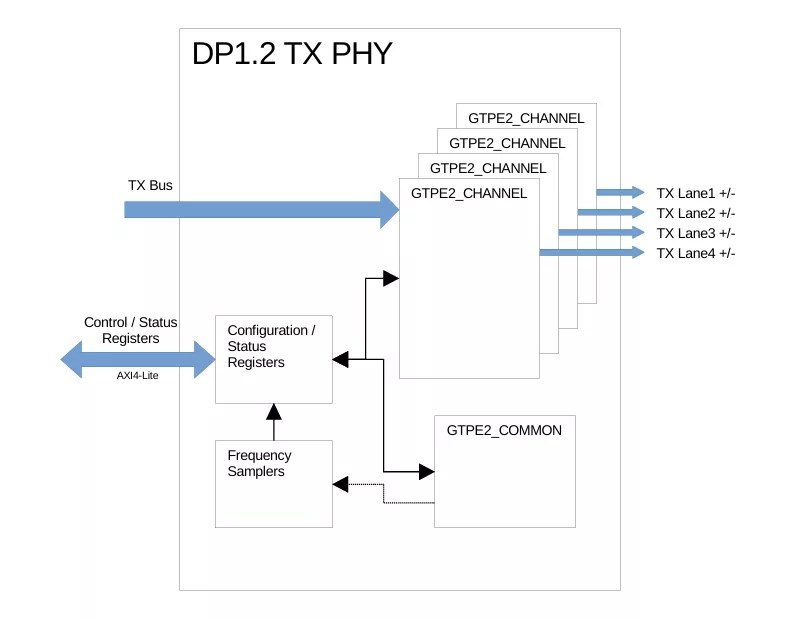

Block Diagram

DPTx 1.2 PHY block diagram

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
DPTx 1.2 PHY
Vendor
Brisbane Silicon

Provider

Brisbane Silicon
HQ: Australia
- Provide top quality FPGA & ASIC products and consulting services. - Engage with existing customers by providing excellent customer support. - Participate in the global FPGA & ASIC industry through trade-shows, open-source development and blogging. - Further the Australian technology sector.
Contact Brisbane Silicon
