Vendor: Comcores Category: Single-Protocol PHY

Ethernet PCS 1G/2.5G

Silicon agnostic implementation of the Physical Coding Sublayer (PCS) compliant with Ethernet standard IEEE 802.3-2018 The Ethern…

Contact Provider Request Datasheet

Overview

Silicon agnostic implementation of the Physical Coding Sublayer (PCS) compliant with Ethernet standard IEEE 802.3-2018

The Ethernet PCS 1G2.5G IP core is a silicon agnostic implementation of the Physical Coding Sublayer (PCS) compliant with Ethernet standard IEEE 802.3-2018. The IP core supports 1G and 2.5G line rates, however other Ethernet PCS speeds are available, such as 10G/25G and 100G. The IP provides an interface between the Media Access Control (MAC) and Physical Medium Attachment (PMA) through a Gigabit Media Independent Interface (GMII) or Serial Gigabit Media Independent Interface (SGMII).

On one side it interfaces to a SerDes device and on the application side it has a port for GMII/SGMII Ethernet signals.

The Ethernet PCS 1G/2.5G IP core is verified using advanced methodologies for RTL design, verification, HW verification and interoperability testing. It has been optimized for size and is a highly tested solution that will fast track any project.

Key features

Delivers Performance

  • Designed to the IEEE 802.3-2018 specification
  • Low Latency
  • Can be used in synchronous Ethernet applications

Feature Rich

  • Configurable for several modes
  • IEEE Std. 802.3 Clause 37 Auto-negotiation
  • Support GMII interface for 1000BASE-X
  • 8B 10B encoding to convert data to 10-bit encoded data for each lane
  • Near-end loopback at both ends

Highly Configurable

  • AXI/APB/MDIO Slave PHY Management interface
  • GMII interfaces for attaching to Ethernet MAC

Silicon Agnostic

  • Designed in SystemVerilog and targeting both ASICs and FPGAs

Block Diagram

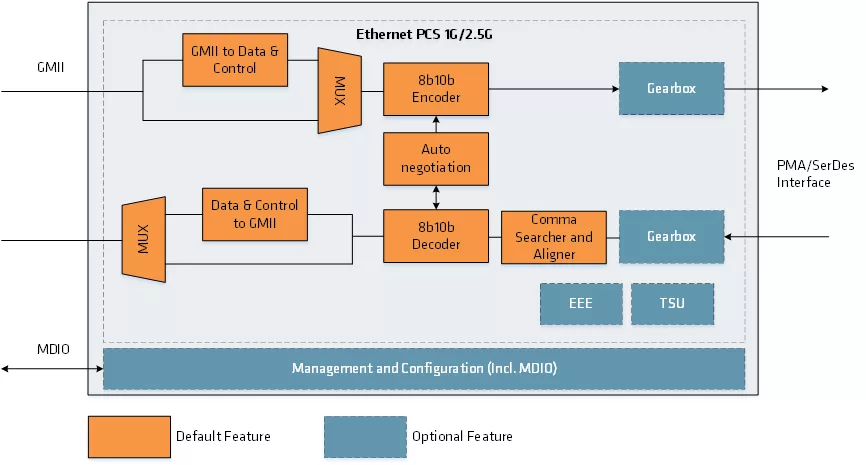

Ethernet PCS 1G/2.5G block diagram

What’s Included?

The IP Core can be delivered in Source code or Encrypted format. The following deliverables will be provided with the IP Core license:

  • Solid documentation, including User Manual and Release Note
  • Simulation Environment, including Simple Testbed, Test case and Test Script
  • Programming Register Specification
  • Timing Constraints in Synopsys SDC format
  • Access to support system and direct support from Comcores Engineers
  • Synopsys SGDC Files (optional)
  • Synopsys Lint, CDC and Waivers (optional)

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
Ethernet PCS 1G/2.5G
Vendor
Comcores

Provider

Comcores
HQ: Denmark
Comcores is a market leader in the development of state-of-the-art IP-cores for communication systems. The company is a leading provider of digital components for high-speed digital connectivity between wireless communication network components as well as radio functionality in existing and next-generation mobile infrastructure networks. Comcores offers leading IP cores solutions, expertise in research and development as well as custom design solutions.
Contact Comcores
