LPDDR5X, LPDDR5, LPDDR4X, LPDDR4, LPDDR3 PHY and Controller The DDR/LPDDR PHY IP, a family of high-speed on-chip interface IP, pr…
Overview
LPDDR5X, LPDDR5, LPDDR4X, LPDDR4, LPDDR3 PHY and Controller
The DDR/LPDDR PHY IP, a family of high-speed on-chip interface IP, provides the industry's highest data rates combined with low-latency throughput while balancing power consumption and minimizing area. The DDR/LPDDR PHY and Controller IP are developed and validated to reduce risk for the customer so that their SoC will work right the first time. Available as a product-optimized solution for specific applications such as DDR5/LPDDR5, DDR4/LPDDR4, DDR3/LPDDR3, and additional multiple protocol combinations.
Key features
- Sideband and in-line SEC/DED ECC
- Supports advanced RAS features including error scrubbing, parity, etc.
- Compliant to LPDDR5/4X/4/3 and DDR5/4/3 protocol memories
- Memory controller interface complies with DFI standards up to version 5.0
- Priority per command on Arm® AMBA® 4 AXI, AMBA 3 AXI
- Single and multi-port host interface options
- QoS features allow command prioritization on Arm AMBA 4 AXI and CHI interfaces
- Silicon proven and shipping in volume

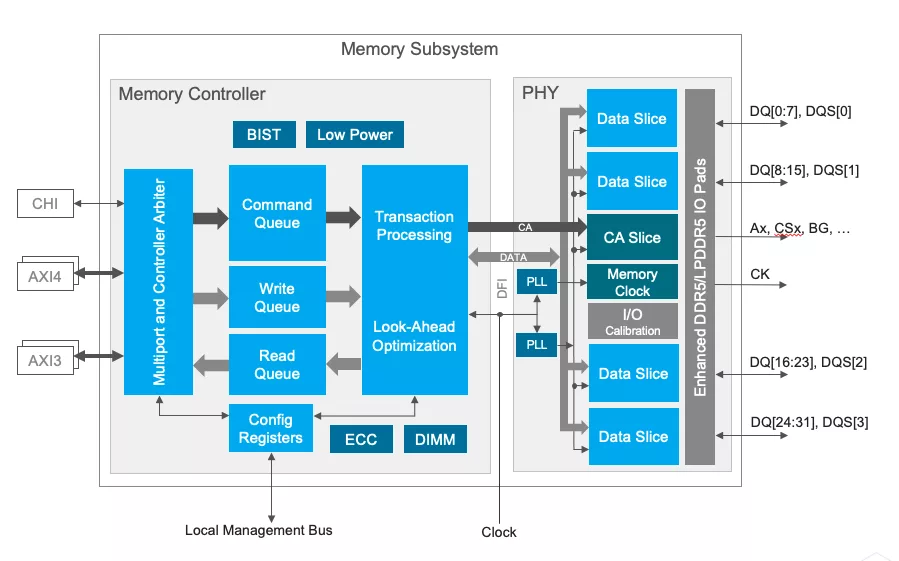

Block Diagram
DDR/LPDDR Controller block diagram
Applications
- Data Processing
What’s Included?
- Clean, readable, synthesizeable Verilog RTL
- Synthesis and STA scripts
- Documentation—integration and user guide, release notes
- Sample verification testbench with integrated BFM and monitors
Specifications
Identity
Part Number
DDR/LPDDR Controller
Vendor
Cadence Design Systems, Inc.
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
Cadence Design Systems, Inc.
HQ:
USA
If you want to achieve silicon success, let Cadence help you choose the right IP solution and capture its full value in your SoC design. Cadence® IP solutions offer the combined advantages of a high-quality portfolio, an open platform, a modern IP factory approach to quality, and a strong ecosystem.
Now you can tackle IP-to-SoC development in a system context, focus your internal effort on differentiation, and leverage multi-function cores to do more, faster.
The Cadence IP Portfolio includes silicon-proven Tensilica® IP cores, analog PHY interfaces, standards-based IP cores, verification IP cores, and other solutions as well as customization services for current and emerging industry standards. The Cadence IP Factory provides you with an automated approach to the customization, delivery, and verification of SoC IP. As a result, you can spend more time on differentiation, with the assurance that you'll meet your performance, power, and area requirements.
Choosing Cadence IP enables you to design with confidence because you have more freedom to innovate your SoCs with less risk and faster time to market.
