AXI External Memory Controller
The AXI External Bus Interface (EBI) allows the processor to transmit and receive data to an external device, usually a memory (S…
Overview
The AXI External Bus Interface (EBI) allows the processor to transmit and receive data to an external device, usually a memory (SRAM, Flash, etc.). The number of read wait states, the number of write wait states, and the memory width are all configurable through the APB register interface of the EBI. The EBI allows word, half-word, and byte width addressing to 64-bit, 32-bit, 16-bit, and 8-bit external devices.
Key features
- Interfaces AXI bus to external SRAM or Parallel Flash devices
- AMBA® AXI Compatible
- Supports 8-bit, 16-bit, 32-bit and 64-bit external modes
- Supports byte (8-bit), halfword (16-bit), word (32-bit) and dword (64-bit) internal accesses
- Independent programmable wait states per device interface
- Selects up to 4 external devices

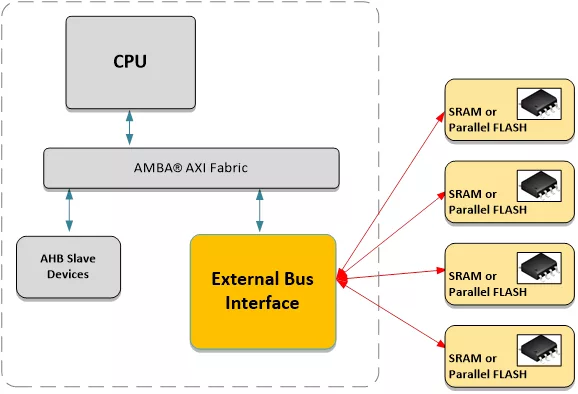

Block Diagram
AXI External Memory Controller block diagram
What’s Included?
- Verilog Source
- Complete Test Environment
- AXI Bus Functional Model
- C-Sample Code
Specifications
Identity
Part Number
AXI External Memory Controller
Vendor
Silvaco, Inc.
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
Silvaco, Inc.
HQ:
United States
Silvaco focuses on enabling the next generation of AI/ML, Cloud/Datacenter, Automotive and Autonomous Driving, IoT and 5G designs through a comprehensive offering of Silicon proven IP. Our portfolio includes a complete catalog of Interface IP, Amba Peripherals, Subsystems, MIPI IP and Automotive Communication Controller IP. Our experienced ASIC and Embedded Software designers have a rich history of designing SOCs with embedded microprocessors which are crucial to building small connected smart chips.
