AHB Arbiter

The AHB Arbiter arbitrates for the AHB bus among as many as four AHB master components.

Contact Provider Request Datasheet

Overview

The AHB Arbiter arbitrates for the AHB bus among as many as four AHB master components. The AHB Arbiter implements a round-robin arbitration algorithm to AHB Master components that are requesting use of the bus. Only one master component may control a given phase of the AHB transaction at a given time.

AHB is a pipelined bus in which there are three distinct phases: Arbitration Phase, Address (or Control) Phase, and Data Phase. A consequence of pipelining is that these phases overlap in time. For example, it is possible that Master component A wins the Arbitration Phase that is coincident with the Address Phase owned by Master component B and the Data Phase owned by Master component C. It is in these terms that an AHB system must be discussed.

The AHB Arbiter has four distinct Mirrored-Master component Ports, each of which can be connected to an AHB Master components (e.g. a processor or a DMA Controller), and one Port that connects to an AHB subsystem, typically through an AHB Channel module.

Key features

  • AMBA® 2.0 Compatible
  • Supports up to 4 AHB Master components
  • Round Robin Arbitration
  • Easily Expandable

Block Diagram

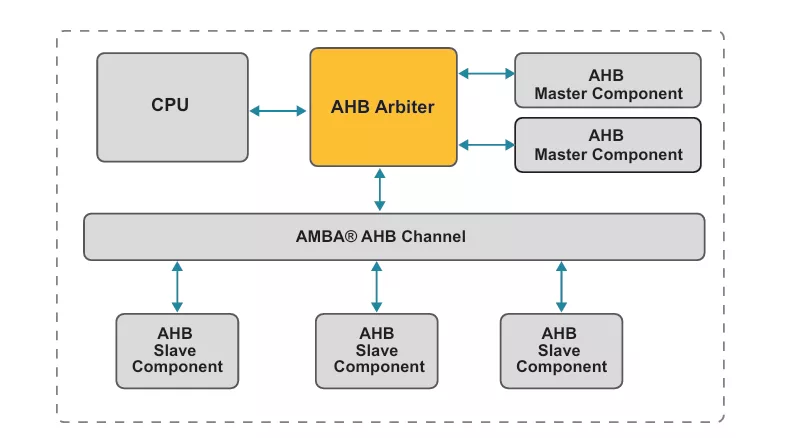

AHB Arbiter block diagram

What’s Included?

  • Verilog Source
  • Complete Test Environment
  • AHB Bus Functional Model

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
AHB Arbiter
