Non-Blocking NxN Crossbar Switch

Non-blocking NxN Crossbar with N inputs ports and N output ports can be used in networking switches such as PCI, Ethernet, Infini…

Contact Provider Request Datasheet

Overview

Non-blocking NxN Crossbar with N inputs ports and N output ports can be used in networking switches such as PCI, Ethernet, InfiniBand, etc. It provides direct and low latency (1 cycle) switching from one port to another port. It can work with fixed packet size or variable packet size. No inter stage queue or memory buffers are required as in case of other topology such as Clos network. This reduces the gate count and memory required to implement crossbar. For the same reason, there is no issue with network saturation. It has less number of nets compared with other topology and have no congestion issue. Control for crossbar is decentralized and is easy to implement.

Key features

  • Low latency switching
    • One clock latency
    • At 1.5 to 2Ghz freq
  • Simpler Control
    • Control per quadrant
  • Throughput
    • up to 200Gb/s per port)
    • Large number of ports
  • Efficient
    • Less number of nets
    • Less congestion
    • Less gate and memory
    • Smaller area
    • Smaller Power

Block Diagram

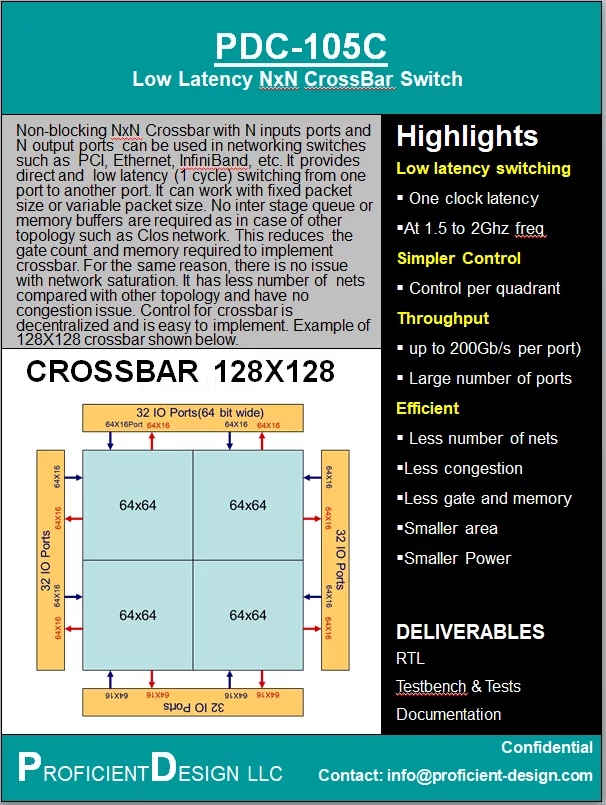

PDC-105C block diagram

Benefits

  • Low latency crossbar switch
  • High throughput
  • Smaller are and power
  • Fewer nets and less congestion

Applications

  • Networking switches such as PCI, Ethernet, InfiniBand

What’s Included?

  • RTL
  • Testbench & Tests
  • Documentation

Specifications

Identity

Part Number
PDC-105C
Vendor
Proficient Design LLC

Provider

Proficient Design LLC
HQ: United States
