PowerPC Bus Arbiter

PowerPC Bus Arbiter

Key features

  • Fully supports PowerPC 60x bus protocol, include PowerPC 603, 604, 740, 750 and 8260.
  • Designed for ASIC or PLD implementations in various system environments.
  • Fully static design with edge triggered flip-flops.
  • Supports up to eight PowerPC bus masters with unlimited slave device support.
  • Supports two outstanding bus accesses.
  • Supports address only transfer and address bus retry.
  • Independent address bus and data bus tenure with separate bus grant and data bus grant.
  • Option for fixed priority assignment or rotating priority scheme

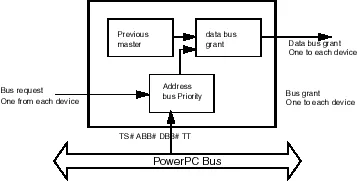

Block Diagram

Files

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
EP300
Vendor
Eureka Technology, Inc.

Provider

Eureka Technology, Inc.
HQ: USA
Eureka Technology Inc. provides reusable IP cores for ASIC, PLD and system designs. These system level function cores are designed to:
  • Shorten Time-to-market
  • Eliminate Design Risks
  • Reduce Development Costs
As today's technologies evolve in a very fast pace, design engineers are constantly looking for ways to speed up the design cycle in order to have product in the market ahead of the competitions. The use of reusable IP cores in IC and system design has emerged as the methodology of choice to address the needs for rapid productization, fast prototyping and software/hardware co-development. Eureka Technology help design engineers stay in the forefront of this new design methodology by providing reusable IP cores. Our reusable IP cores are silicon proven and pre-verified to meet and exceed customer requirements. Design risk is virtually eliminated since each one of these cores has been fully tested and proven in real world applications. Since founded in 1993, Eureka Technology has established itself as a leading reusable IP core provider with customer base in the United States, Japan, and Europe. We have provided reusable IP cores to many market leaders in the computer, electronics and semiconductor industries. Our technologies have been incorporated into tens of million dollars' worth of products sold by our customers. We also have entered partnership agreements with leading silicon vendors to incorporate our reusable IP cores into their silicon products. However, our important partnership is the one with our customers and we would like to be the design partner for your next project.
