64-bit RISC-V Application Processor Core

The A70 is a 64-bit RISC-V application processor aimed at systems running Linux.

Contact Provider Request Datasheet

Overview

The A70 is a powerful 64-bit RISC-V application processor aimed at systems running Linux. The core has an in-order 7-stage pipeline enabling greater than 1 GHz frequencies in 22nm HPC.
The core includes integrated L1 data and instruction caches, an interrupt controller and RISC-V Debug module optionally with PC trace.
Like all Codasip RISC-V cores it is possible to create custom instructions using Codasip Studio to extend the ISA and to generate corresponding hardware and software development kits.

Key features

  • 64-bit RISC-V core
    • RV64GC (GC=IMAFDC)
  • Linux capable
  • In-order 7-stage pipeline
  • RISC-V mode support:
    • Machine
    • Supervisor
    • User
  • Internal interrupt controller
    • Up to 256 sources
  • Dynamic jump prediction
  • Optional FPU
  • Integrated L1 data and instruction caches
  • L2 cache coherence for up to 4 cores
  • MMU
  • On-chip debugger
    • JTAG and RISC-V Debug module
  • >1GHz clock in 22 nm

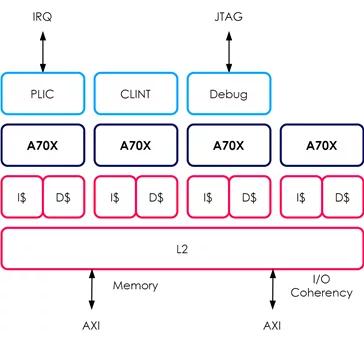

Block Diagram

Codasip A70-MP block diagram

Benefits

  • Performance
    • High computational throughput with 7-stage pipeline and branch predictor
    • Support for RISC-V single and double precision FPU
    • Linux-ready with instruction cache, data cache and MMU
  • Extensibility
    • Ability to create custom RISC-V extensions to optimise performance
    • Efficient architectural exploration of custom extensions with Studio
    • Automatic HDK and SDK generation from Studio
    • Rigorous verification of modified core using UVM

Applications

  • Routers, switches, consumer electronics, industrial

What’s Included?

  • Human-readable and structured RTL in either:
    • Verilog
    • VHDL
    • System Verilog
  • Hardware development kit (HDK)
    • Synthesis scripts
    • Simulation testbenches
    • Debug support
  • Software development kit (SDK)
    • GCC C-compiler
    • Assembler
    • Disassembler
    • Linker
    • Instruction-accurate simulator
    • Cycle-accurate simulator
    • Profiler
  • Options for extending A70
    • CodAL model for Codasip Studio
    • Full-feature Studio tool for extending Bk7 core
    • GUI for rapid development and debugging
    • Automatic HDK & SDK generation

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
Codasip A70-MP
Vendor
Codasip

Provider

Codasip
HQ: Germany
With semiconductor scaling failing, it is becoming necessary to design specialised cores optimised to a particular workload. With its open and modular ISA, RISC-V is a good basis on which to build a domain-specific accelerator. Codasip’s family of RISC-V cores covers the range from simple embedded applications to application processors capable of running Linux. The cores offer a variety of different pipeline lengths and computational options. These cores can be supplied in standard off-the-shelf configurations or can be extended using the Codasip Studio tool to achieve your unique processing requirements. Codasip Studio – used to develop the Codasip RISC-V cores – allows hardware and software design kits to be automatically generated from a high-level processor description language. Codasip began operations as a spinout from the Brno University of Technology/Faculty of Information Technology in 2014 based on 10 years of research. Codasip is a founding member of the RISC-V International and was the first company to offer a commercial RISC-V IP core in 2015. Today in addition to the original R & D centre in Brno, Czech Republic, Codasip has design centres in France and the UK. Codasip has sales offices in Europe, North America, China, Japan and Korea.
