Vendor: Sifive, Inc. Category: CPU

Highest performance four-issue, out-of-order RISC-V vector application processors

The latest generation SiFive Performance™ P600-Series processors are the highest performance commercially licensable RISC-V proce…

Contact Provider Request Datasheet

Overview

The latest generation SiFive Performance™ P600-Series processors are the highest performance commercially licensable RISC-V processors.

The P670 vector application processor features a thirteen-stage, four-issue, out-of-order pipeline and offers best-in-class performance, with >50% uplift over the SiFive Performance P550, while maintaining a significant performance-per-area advantage compared to the Arm® Cortex®-A78.

For applications that don't require vector compute, or for more area-constrained markets, the P650 offers similar performance levels in a smaller area footprint.

Key features

  • Full support for the RVA22 RISC-V profile specification for enabling 64-bit apps processors running feature rich OS stacks such as Linux and Android.
  • Breakthrough RISC-V performance
    • Coherent, multi-core, multi-cluster processor configurations, with up to 16 cores
    • Highest performance commercially licensable RISC-V processor achieving >12
  • >12 SpecINT2k6/GHz (P670 Processor)
    • 2x 128-bit RISC-V Vector ALUs compliant with the ratified v1.0RISC-V Vector specification
    • RISC-V Vector Cryptography extension (P670 Processor)
  • P600-Series Architectural Features
    • 64-bit RISC-V core with extensive Virtual Memory Support
    • Four-issue, out-of-order pipeline tuned for scalable performance
    • Private L2 Caches and Streaming Prefetcher for improved memory performance
    • SECDED ECC with Error Reporting
  • Enabling next generation high performance applications
    • RISC-V Hypervisor Extension and System-Level Virtualization IP
    • Advanced interrupt controller with support for MSI style interrupts and virtualization
    • SiFiveWorldGuard System Security
    • Cache stashing to L3 for tightly coupled accelerators

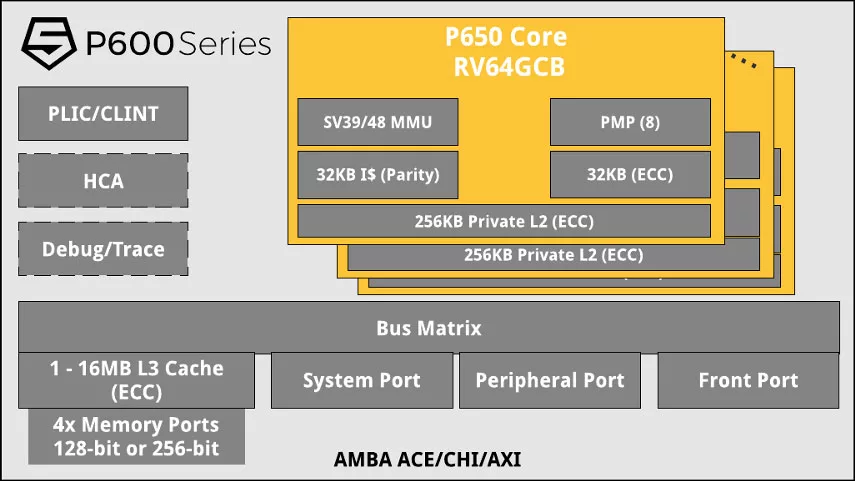

Block Diagram

Performance P650 block diagram

What’s Included?

  • RTL Evaluation
  • Test Bench RTL
  • Software Development Kit
  • FPGA Bitstream
  • Documentation

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
Performance P650
Vendor
Sifive, Inc.

Provider

Sifive, Inc.
HQ: USA
SiFive brings the power of the open source RISC-V ISA combined with innovations in CPU IP to the semiconductor industry, making it possible to develop domain-specific silicon faster than ever before. With its OpenFive business unit, the industry leaders in domain-specific silicon, SiFive is accelerating the pace of innovation for businesses large and small.
