Vendor: InPsy Category: NAND Flash

4800 ONFI NV-DDR3 and NV-LPDDR4 with 4-tap DFE

Our 4800 ONFI PHY is a IP solution, including I/O, PMA, PCS and test engine with four-tap DFE.

Contact Provider Request Datasheet

Overview

Our 4800 ONFI PHY is a complete IP solution, including I/O, PMA, PCS and test engine with four-tap DFE. The IPT 4800 ONFI PHY facilitates high-speed data transfer between NAND flash memory and host controllers. This interface is crucial for enhancing the performance and reliability of storage solutions in various applications, from consumer electronics to industrial systems.

Key features

  • Supports Both NV-DDR3 and NV-LPDDR4 with 4-tap DFEs
    • NV-DDR3 up to 3,600 MT/s
    • NV-LPDDR4 up to 4,800MT/s
  • Support Decision Feedback Equalization (DFE): For extra high loading, DFE can reduce errors and improve data integrity
  • Compliant with JEDEC 6.0 (TBD) and JESD 230G specifications
  • Supports real-time PVT data-eye monitoring
  • Supports all required trainings and calibrations
  • Supports Power-Down Modes
    • Active
    • Low-power Run
    • Sleep
    • Low Power Sleep
    • Standby
    • Hibernate
  • Compliant with AMBA APB3.0 for register accessing

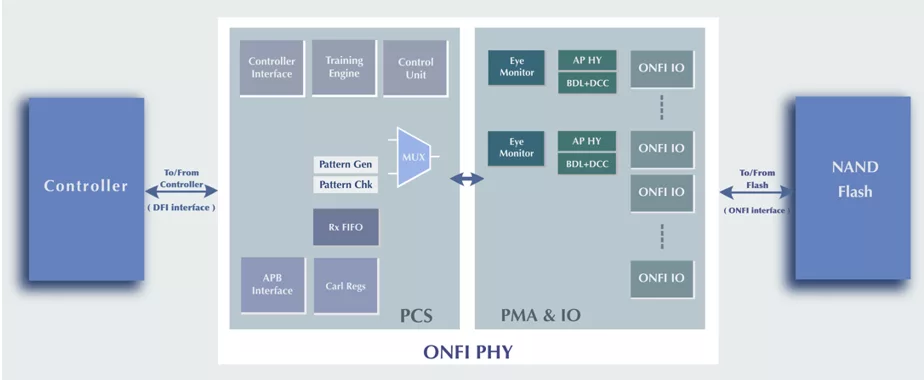

Block Diagram

4800 ONFI NV-DDR3 and NV-LPDDR4 with 4-tap DFE block diagram

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
4800 ONFI NV-DDR3 and NV-LPDDR4 with 4-tap DFE
Vendor
InPsy

Provider

InPsy
HQ: Taiwan (R.O.C.)
InPsy was founded in September 2019 with a vision to empower customer innovation with cutting-edge semiconductor interconnect IP solutions. Through seamless collaboration with major global wafer foundries, chip design houses and strategic partners, InPsy has demonstrated its mass production proven track record of IP technology firsts on the most advanced technology nodes. Ultimately, our mission is to be the leading provider of innovative silicon IP solutions, recognized globally for our unmatched customer satisfaction, exceptional quality, and technical excellence. Think of us as your outsourced, in-house IP design team
Contact InPsy
