3600 ONFI NV-DDR3 and NV-LPDDR4 with Optional DFE
Our 3600 ONFI PHY is a silicon proven IP solution, including I/O, PMA, PCS and test engine with optional one-tap DFE.
Overview
Our 3600 ONFI PHY is a silicon proven complete IP solution, including I/O, PMA, PCS and test engine with optional one-tap DFE. The IPT 3600 ONFI PHY facilitates high-speed data transfer between NAND flash memory and host controllers. This interface is crucial for enhancing the performance and reliability of storage solutions in various applications, from consumer electronics to industrial systems.
Key features
- Silicon proven
- Supports Both NV-DDR3 and NV-LPDDR4 with optional 1-tap DFE
- NV-DDR3 up to 3,600 MT/s
- NV-LPDDR4 up to 3,600MT/s
- Support Decision Feedback Equalization (DFE): For extra high loading, DFE can reduce errors and improve data integrity
- Compliant with JEDEC 5.1 and JESD 230F specifications
- Supports real-time PVT data-eye monitoring
- Supports all required trainings and calibrations
- Supports Power-Down Modes
- Active
- Low-power Run
- Sleep
- Low Power Sleep
- Standby
- Hibernate
- Compliant with AMBA APB3.0 for register accessing

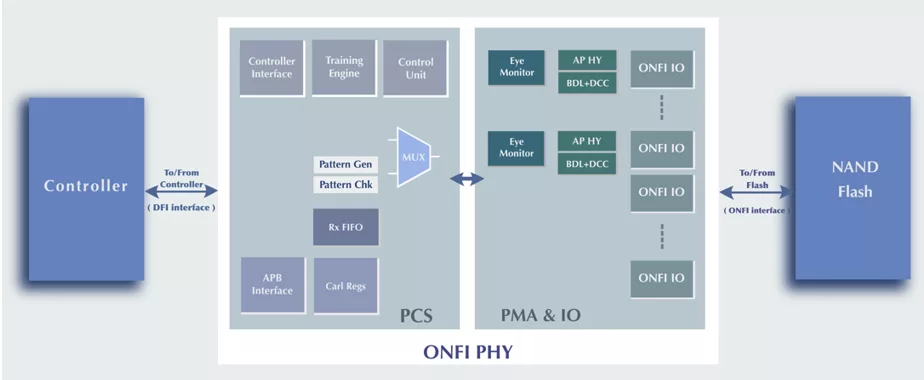

Block Diagram
3600 ONFI NV-DDR3 and NV-LPDDR4 with Optional DFE block diagram
Files
Note: some files may require an NDA depending on provider policy.
Specifications
Identity
Part Number
3600 ONFI NV-DDR3 and NV-LPDDR4 with Optional DFE
Vendor
InPsy
Provider
InPsy
HQ:
Taiwan (R.O.C.)
InPsy was founded in September 2019 with a vision to empower customer innovation with cutting-edge semiconductor interconnect IP solutions. Through seamless collaboration with major global wafer foundries, chip design houses and strategic partners, InPsy has demonstrated its mass production proven track record of IP technology firsts on the most advanced technology nodes. Ultimately, our mission is to be the leading provider of innovative silicon IP solutions, recognized globally for our unmatched customer satisfaction, exceptional quality, and technical excellence. Think of us as your outsourced, in-house IP design team
