Vendor: VeriSilicon Microelectronics (Shanghai) Co., Ltd. Category: Video Processing

Multi-format video encoder IP

Hantro VC9000E enables 8K encoding with a competitive PPA and high video quality single-core solution supporting AV1, HEVC, H.264…

Contact Provider Request Datasheet

Overview

Hantro VC9000E enables 8K encoding with a competitive PPA and high video quality single-core solution supporting AV1, HEVC, H.264, VP9 video formats and JPEG.

VeriSilicon's Hantro VC9000E is based on silicon-proven VeriSilicon Hantro technology that has been widely developed in use cases like low power AIoT devices, smartphones, tablets, ARVR, automotive, set-top boxes, DTV’s and video cameras worldwide.

Hantro VC9000E provides customers a silicon proven solution for integrating high-performance video capability into their chips.

Key features

  • Video Format
    • Unified architecture supports multiple formats
    • AV1 main profile 8/10bit
    • HEVC main10, main, and main still profiles
    • H.264 baseline, main and high, high10
    • VP9 profile 0 and profile 2 (10-bit)
    • JPEG
  • High performance and throughput
    • Up to 4K60@520Mhz performance with a single-core
    • High BUS latency tolerance without performance impact
    • Maximally offloads the system CPU
    • Leading in PPA/Die Area for high performance solution
  • High encoding quality
    • Leading PSNR BDR data
    • Visual quality optimization
    • User Controlled Intelligent encoding capability with AI by FLEXA API
  • Features for different application requirements
    • Inline preprocessing features and OSD blending
    • DDR efficiency and bandwidth saving
    • Low-latency encoding
  • Flexible HW configuration
    • HW configuration can be done for most video formats
    • Typical 1-4 cores or more in a device
    • Best balance between PPA and video quality for different targets
    • Configurable on quality level, feature set, and different performance
    • Controllable balance between performance and quality
    • Bandwidth saving by reference frame & input frame compression

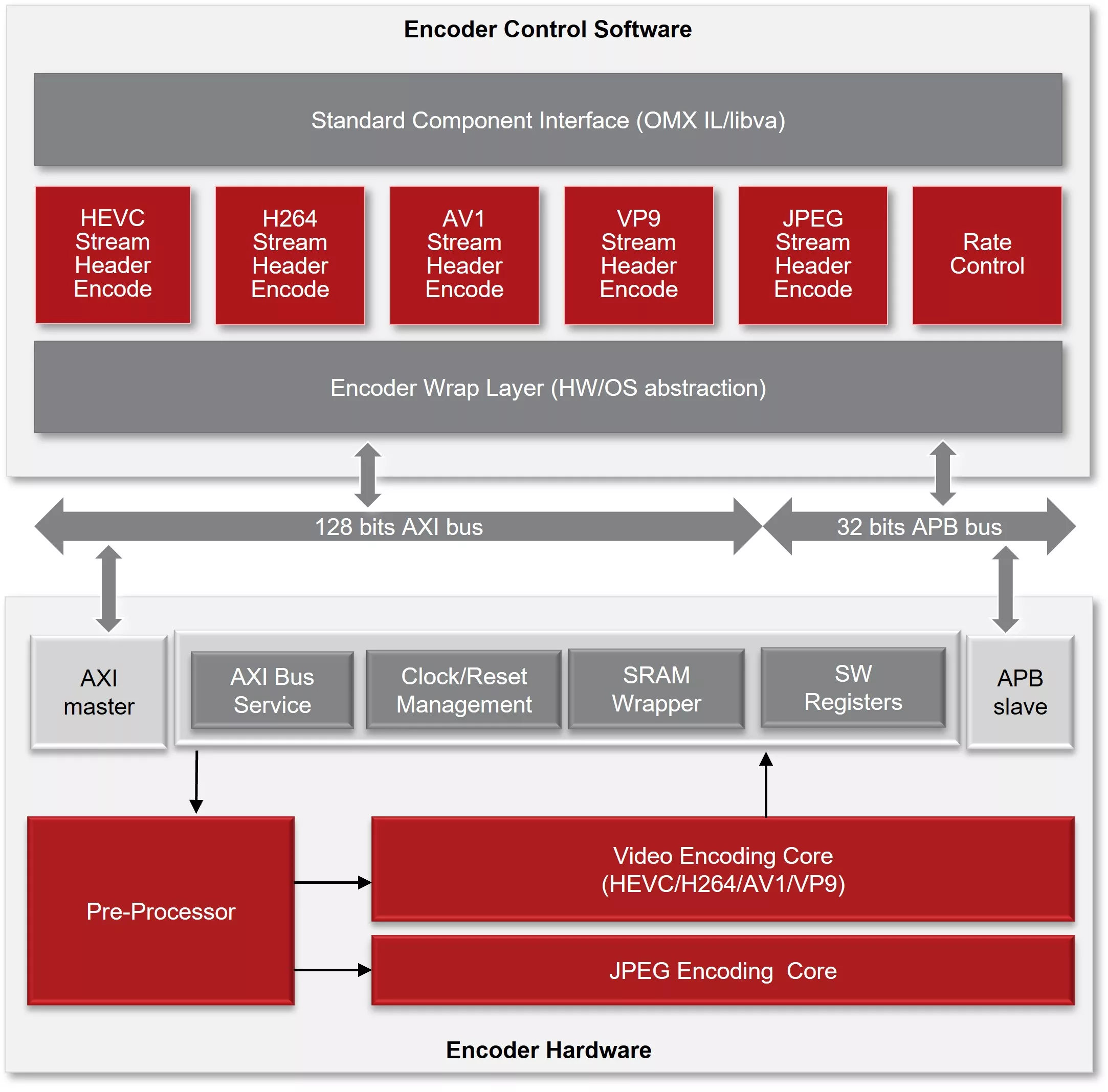

Block Diagram

VC9000E block diagram

Applications

  • Surveillance
  • IPCam
  • Automotive
  • IOT
  • Industrial
  • Medical
  • Mobile

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
VC9000E
Vendor
VeriSilicon Microelectronics (Shanghai) Co., Ltd.
Type
Silicon IP

Provider

VeriSilicon Microelectronics (Shanghai) Co., Ltd.
