Vendor: Cybertek Solution Inc. Category: VESA DSC

DSC Decoder

Display Stream Compression (DSC) standard was announced by Video Electronics Standards Association (VESA) in 2014 for video data …

Overview

Display Stream Compression (DSC) standard was announced by Video Electronics Standards Association (VESA) in 2014 for video data compression and has been also adopted into the VESA's eDP v1.4 and the MIPI DSI standard.

Compliant with the VESA DSC 1.2a and 1.2b standards, CYBDSC2d IP core supports various coding schemes (MMAP, BP, MPP, ICH) as well as color formats in YCbCr 4:4:4, 4:2:2, 4:2:0 and RGB. It performs visually lossless compression, low gate count and latency for ultra-high definition display applications. It can be fastly and easily integrated into ASIC and FPGA applications for 4K / UHD TV, DisplayPort 1.4, USB Type-C device and AR / VR product.

Key features

  • Compliant with the VESA DSC 1.2a and 1.2b standards
  • Perform decoding
  • Support MMAP, BP, MPP and ICH
  • Support YCbCr 4:4:4, 4:2:2, 4:2:0 and RGB
  • Support 8/10/12 bits per component
  • Support 3 pixels per clock
  • Configurable features for gate count, speed or power requirement
  • Programmable display resolutions

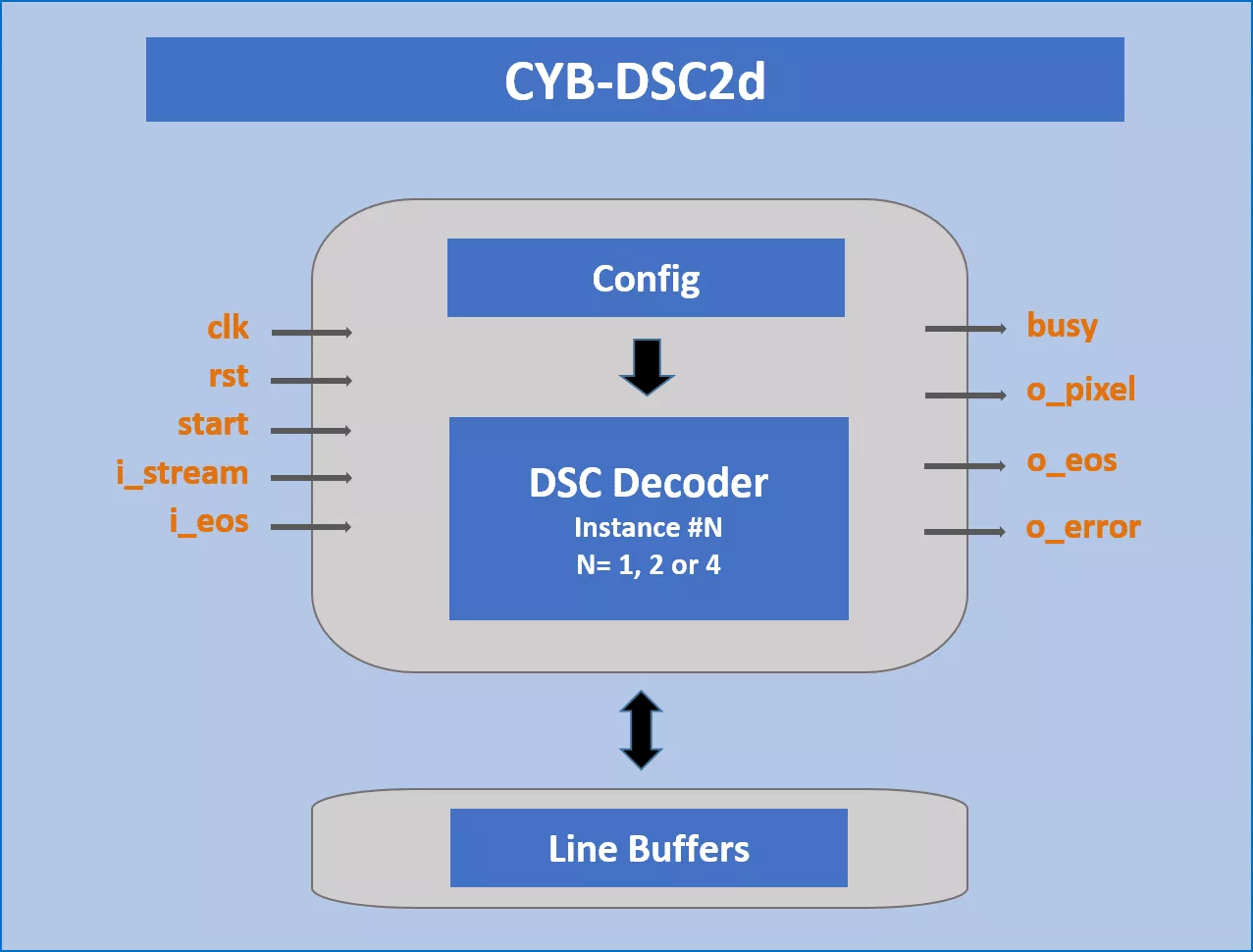

Block Diagram

CYB-DSC2d block diagram

Applications

  • 4K / UHD / Digital TV
  • Automotive Video
  • DisplayPort 1.4 device
  • USB Type-C device
  • AR / VR product

What’s Included?

  • Flexible licensing
  • Documentation
  • Netlist
  • Verilog or VHDL
  • Testbench
  • Technical support

Specifications

Identity

Part Number
CYB-DSC2d
Vendor
Cybertek Solution Inc.
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.
