USB Full Speed Transceiver
Key Features
- Exceeds USB 2.0 Full Speed specification.
- Trimmed pull up resistor.
- Enable / suspend feature.
- DPF and UFP options available.
- External resistor option (no trimming required).
- Uses straight through PDK pads.
- Built in secondary ESD protection.
- Optional core to 3.3V level shifters.
- 3.3V operation.

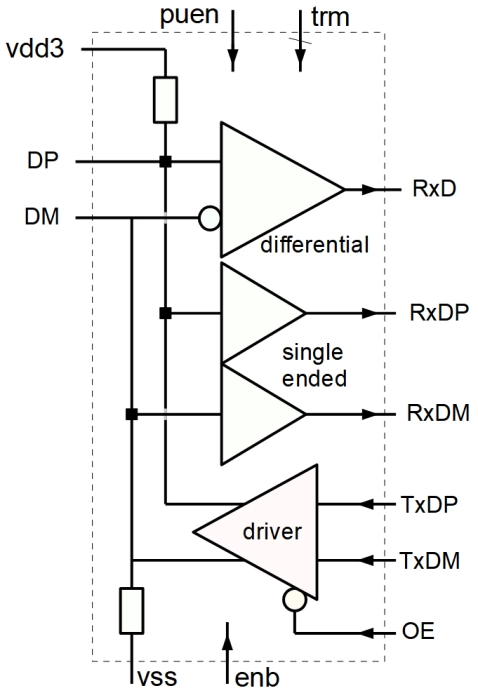

Block Diagram

Deliverables
- Verilog model.
- Spice netlist for LVS.
- Design review spice files.
- GDS format layout.
- LEF file.
- Timing files.
- Integration notes.
- Production test notes.
Service
- $14K multi-use license pricing.
- 6 months support included.
- Available detailed design review.
- 4 Weeks lead time for process ports to similar technologies.
Technical Specifications
Short description
USB Full Speed Transceiver
Vendor
Vendor Name
GLOBALFOUNDRIES
In Production:
130nm
SMIC
In Production:
180nm
G
TSMC
Silicon Proven:
180nm
G
UMC
In Production:
180nm
Pre-Silicon: 110nm
Silicon Proven: 180nm
Pre-Silicon: 110nm
Silicon Proven: 180nm
VIS
Pre-Silicon:
150nm
Silicon Proven: 150nm
Silicon Proven: 150nm
