Polar Encoder / Decoder for 3GPP 5G NR

Overview

The patented polar encoding and decoding IP for the 3GPP New Radio uplink and downlink includes the entire processing chain, to provide quick and easy integration and minimize the amount of extra work needed. The polar core uses PC- and CRC-aided SCL polar decoding techniques, in order to achieve compromise-free error correction performance. The  decoding IP has several parameters, which can be adjusted at synthesis-time to scale the parallelism, latency and throughput. The decoder list size can be reduced from the typical list 8, in order to best fit the required application.

Functional specifics



Encoder Decoder
CRC aided SCL encoding CRC aided SCL decoding
Zero padding Sub block de-interleaving
CRC24C attachment Filler bits insertion/removal
CRC scrambling and interleaving Rate dematching
Frozen bit insertion Channel de-interleaver
Sub block interleaving
Rate matching

Product Codes

Code Description Delivery Type

PD550

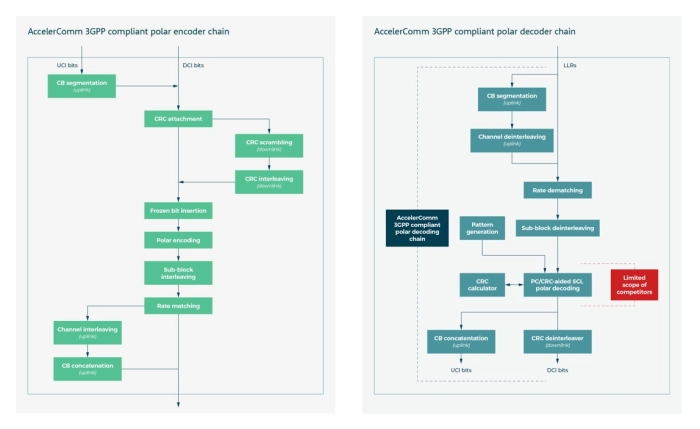

To enable higher throughput and reduce CPU load. Transport block processing and all code block components are included in the complete Polar 5G NR compliant chain. See Polar decoder chain diagram

Encrypted RTL or FPGA Netlist

PE550

To enable higher throughput and reduce CPU load. Transport block processing and all code block components are included in the complete Polar 5G NR compliant chain.

Encrypted RTL or FPGA Netlist

PD600

Optimized decoder core only for Intel Architecture (IA) and AVX512 co-processor.

Software binary for IA

Key Features

  • Fully compliant with the 3GPP NR standard for PUCCH, PUSCH, PDCCH and PBCH. Supports the full range of uncoded and encoded block sizes
  • Implements the entire Polar encoding and decoding chain in 3GPP TS38.212
  • High error correction performance from Polar PC/CRC-aided decoder core
  • Tightly integrates the components in the chain to reduce area usage and latency
  • Simple interface, quick to integrate.only the number of uncoded bits (A) and encoded bits (E) needs to be input alongside the bits or LLRs
  • FPGA support for Xilinx, Intel and Achronix
  • Optimized for ASIC process
  • Optimized software solution on Intel Architecture and AVX512 acceleration
  • Matlab and C Models available
  • Configurable parameters for power and performance optimization
  • Scalable design with configurable list size
  • Standard AXI interfaces

Block Diagram

Polar Encoder / Decoder for 3GPP 5G NR Block Diagram

Deliverables

  • RTL
  • C/Matlab Models
  • Test bench

Technical Specifications

Short description
Polar Encoder / Decoder for 3GPP 5G NR
