MIPI D-PHY/LVDS Combo Transmitter IP

Overview

The MXL-LVDS-DPHY-DSI-TX is a combo PHY that consists of a high-frequency low-power, low-cost, source-synchronous, Physical Layer supporting the MIPI® Alliance Standard for D-PHY and a high performance 4-channel LVDS Serializer implemented using digital CMOS technology.

In LVDS mode, both the serial and parallel data are organized into 4 channels. The parallel data is 7 bits wide per channel. The input clock is 25MHz to 150MHz. The serializer is highly integrated and requires no external components. The circuit is designed in a modular fashion and desensitized to process variations. This facilitates process migration, and results in a robust design.

Key Features

  • D-PHY Features:

    • Consists of 1 Clock lane and up to 4 Data lanes
    • Supports MIPI Standard 1.1 for D-PHY
    • Supports both high speed and low-power modes
    • 80 Mbps to 1.05Gbps data rate in high speed mode
    • 10 Mbps data rate in low-power mode
    • High Speed Serializer included
    • Low power dissipation
    • Optional resistance termination calibrator

  • LVDS Features:

    • 24-150 MHz clock support
    • Up to 1050 Mbps bandwidth/channel
    • Up to 4.2 Gbps data throughput
    • Low power CMOS design
    • Integrated PLLs
    • 7 bit serial data transmitted per pixel clock per channel
    • Programmable rising/falling edge data strobe
    • Compatible with TIA/EIA-644 LVDS Standard

Block Diagram

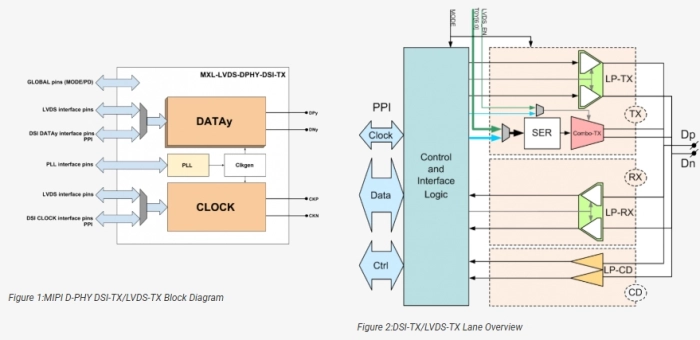

MIPI D-PHY/LVDS Combo Transmitter IP Block Diagram

Technical Specifications

Short description
MIPI D-PHY/LVDS Combo Transmitter IP
Vendor
Vendor Name
TSMC
Silicon Proven: 110nm G
