Overview
qLR-Aubrey-ref-1.62-3.63-0.55-2.5.02_TSMC_40_uLPeF is an ultra-low quiescent LDO (Linear regulator) in TSMC 40uLPeF.
| PARAMETERS |
CONDITION |
Minimum value
|
Typical value
|
Maximum value
|
|
Input Voltage
|
- |
1.62 V |
|
3.63 V |
|
Output Voltage
|
- |
0.55 V |
|
2.5 V |
|
Output current configuration
|
- |
- |
1 mA |
- |
Key Features
- 10 % DC output voltage accuracy.
- - 20 dB PSRR.
- 1 mA maximum load current.
- 140 nA quiescent current (no load)
Benefits
- Very low quiescent and leakage for Low-Power
- Retention capability enables optimization of the power consumption depending on the modes and needs of the SoC
- Can supply always-on very low loads
- Low Bill-of-Material: supports external capacitor if required by the system

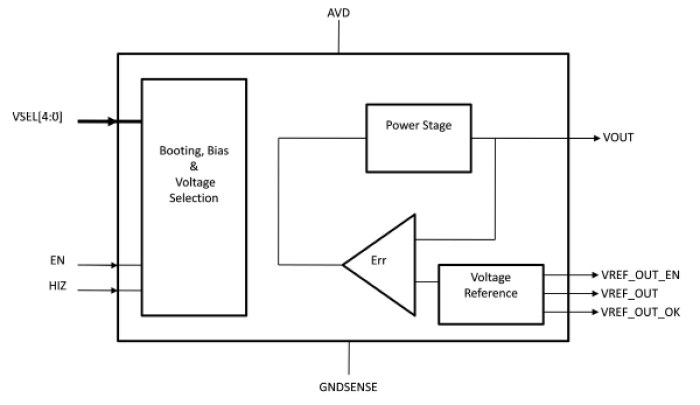

Block Diagram
Applications
- AR - VR
- Bluetooth
- Cellular IoT
- GNSS
- Hearing aids
- Home Appliance
- Infotainment
- NB-IoT
- Smart Headset
- Smart Speaker
- TWS Earpods
- ULP MCU
- Voice-controlled devices
- Voice Assistant
- WiFi
Technical Specifications
Short description
Linear Regulator, ultra low quiescent current for retention mode TSMC 40uLPeF
Vendor
Vendor Name
Foundry, Node
TSMC 40uLPeF
TSMC
Pre-Silicon:
40nm
LP
