BTREE's Color Enhancement IP modifies or emphasizes color by controlling Saturation/Luminance/Hue. BTREE's Color Enhancement can only adjust the color & brightness of the specific area that user wants. Therefore, no change in other regions due to color adjustment of each area.
Color Enhancement (CLREN) IP
Overview
Key Features
- Configurable Maximum Display Resolution
- FHD/QHD
- 2 BUS / 4 BUS of Interface
- 10 bit of Bit Processing
- 12 Region Color Control
- ? S, ? H, ? L Control at Each Region
- Hue Adjustable Range
- Max 240 °, Min 0.177°
- Saturation/Luminance
- Max gain x 15.99
- Global/Local Control
- Optimized for Power Saving
Benefits
- RGB->RGB
- No Color Space Conversion
- No Color Truncation Effect
- Small Gate Size
- Easy to Tune
- Small Calculation Error
- Power Saving

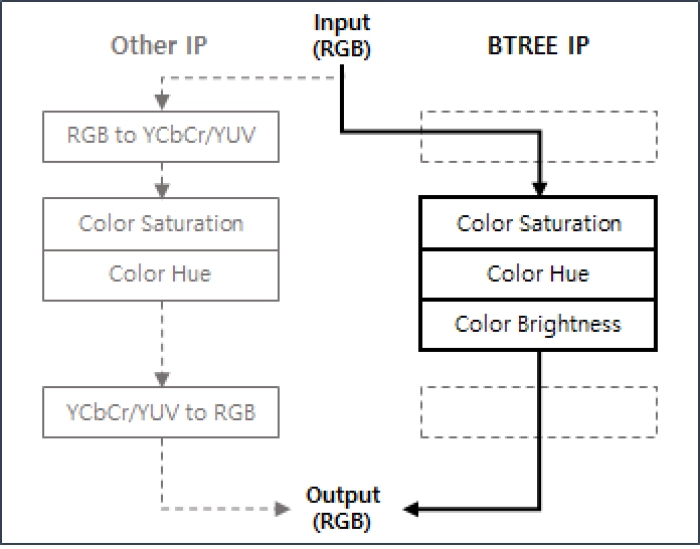

Block Diagram
Video
BTREE Color Enhancement IP (DDI IP)
Color Enhancement IP modifies or emphasizes color by controlling Saturation/Luminance/Hue. BTREE’s Color Enhancement can only adjust the color & brightness of the specific area that user wants. Therefore, no change in other regions due to color adjustment of each area.
Deliverables
- IP Specification
- Encrypted RTL Source Code IP Core
- Comprehensive Integration Guide
- Technical Support and Maintenance Updates
Technical Specifications
