Overview
A radiation-hardened GlobalFoundries 12nm LP/LP+ Flip-Chip IO library with both 1.8V and 3.3V GPIO, fail-safe GPI, analog cell, and associated ESD. Also features an LDO optimized for use with 3.3V GPIO.
This radiation-hardened, by design, library features both a 1.8 and 3.3V GPIO with multiple drive strengths of 2mA, 4mA, 8mA, and 16mA, along with a full-speed output enable function. The library includes an LDO to generate a 1.8V refer ence which has been optimized for use with the 3.3V GPIO. The library incorporates radiation-hardened ESD cells, which are silicon-proven. A fail-safe GPI allows user to interface with bus-type protocols like I2C. All cells support independent power sequencing and integrate power-on-control circuitry for a clean low-leakage power-up. A selectable Schmitt trigger receiver adds input flexibility, while a 50K ohm pull-up or pull-down resistor is available for termination configurations. The library is enriched with feed-through, filler, transition, and domain-break cells to allow for flexible pad ring construction while maintaining ESD robustness. ESD targets are 2KV HBM / 500V CDM with 2KV IEC 61000-4-2 system stress capability.
Operating Conditions
| Parameter | Value |
| VDDIO | 1.8 or 3.3V |
| Core VDD | 0.8V |
| Tempeature | -40C to 125C |
| Max Load | 50 pF |
Library Summary
| Item | Description |
| 1.8V Cell size | 23um ×60um |
| 3.3V Cell size | 30um ×85um |
| I/O device | 1.8V Gate Oxide |
| BEOL | 13M_3Mx_2Cx_4Kx_2Hx_2Gx_LB |
| Supply/ESD | 1.8 - 3.3V;0.9V; GND |
| GPIO | see GPIO Features |
| GPI | Fail safe input |
| Power | Core and IO power. |
| Vref | LDO optimized for GPIO |
| Analog | Analog I/O with ESD |
| Proton Test | 64MeV, fluence 5E+11 (ESD only) |
Key features
- 2mA, 4mA, 8mA and 16mA drive strengths
- Pairs with optimized LDO (3.3V only)
- Full-speed output enable
- Independent power sequencing
- Integrated power-on-control circuitry
- Selectable Schmitt trigger receiver
- 50K ohm selectable pull-up or pull-down resistor item ESD: 2KV HBM, 500V CDM3, 2KV IEC 61000-4-24
- Standards
- 1.8V and 3.3V LVCMOS
- 1.8V and 3.3V LVTTL
- I2C and SPI (Input only)

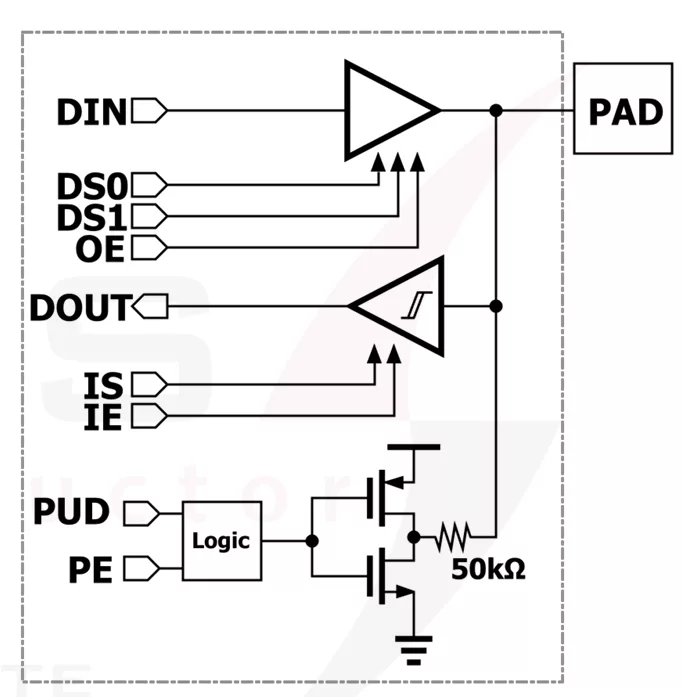

Block Diagram
