Vendor: Rambus, Inc. Category: VESA DSC

VESA DSC Encoder

The VESA DSC and VDC-M IP cores deliver visually lossless video compression for mobile, AR/VR and automotive display applications.

Contact Provider Request Datasheet

Overview

The VESA DSC and VDC-M IP cores deliver visually lossless video compression for mobile, AR/VR and automotive display applications.

The VESA DSC IP cores can compress any image to 8 bits per pixel (bpp), which results in a 3X compression ratio for a 24 bpp image or a 3.75X compression ratio for a 30 bpp image. The VDC-M cores use more sophisticated video encoding tools to achieve even higher compression factors for applications that require even more compression. VDC-M can reduce a 30 bpp uncompressed image to 6 bpp, and in some use cases, it can be visually lossless at a 6X compression ratio.

The VESA DSC and VDC-M IP cores can be combined with the MIPI DSI-2 Controller cores, and your choice of C/D-PHY, to form a complete display solution.

Key features

  • VESA Display Stream Compression (DSC) 1.2b compliant
  • Supports all DSC 1.2b mandatory encoding mechanisms: MMAP, BP, MPP, and ICH
  • Output buffering compatible with transport stream over video interfaces
  • Configurable maximum display resolution
  • Configurable compressed bit rate, in increments of 1/16 bpp
  • 8, 10, 12, 14, and 16 bits per video component
  • YCbCr and RGB video input format
  • 4:4:4, 4:2:2, and 4:2:0 native coding
  • 1 pixel / clock (Encoder) and 3 pixels / clock (Decoder) internal processing architecture in 4:4:4
  • 2 pixel / clock (Encoder) and 6 pixels / clock (Decoder) internal processing architecture in 4:2:2 and 4:2:0
  • Parameterizable number of parallel slice encoder instances (1, 2, 4, or 8) to adapt to the capability of the technology and target display resolutions used
  • Multiple slices per line in each encoder instance supported
  • 100% verification coverage based on UVM environment
  • Verified against the VESA DSC 1.2b C model using a comprehensive test image library
  • Backward compatible with DSC 1.1

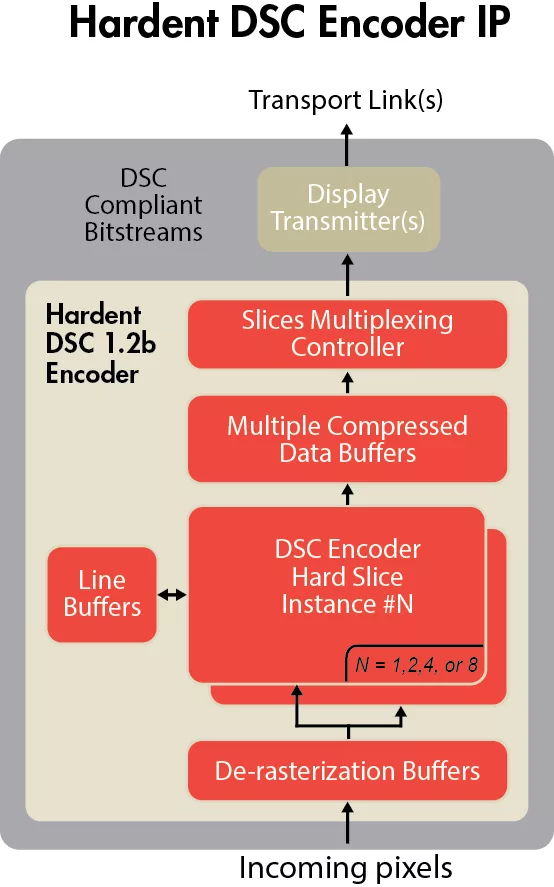

Block Diagram

VESA DSC Encoder block diagram

Benefits

  • IP customization and integration services available on request
  • Multi-project licenses available
  • UVM verification bindable modules

Applications

  • 4K / 8K / UHD TVs
  • Digital TV products
  • AR / VR products
  • DisplayPort 1.4 products
  • HDMI 2.1 products
  • USB Type-C products

What’s Included?

  • Encrypted RTL source code IP core
  • Functional and structural coverage reports
  • Comprehensive integration guide
  • Technical support and maintenance updates

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
VESA DSC Encoder
Vendor
Rambus, Inc.
Type
Silicon IP

Provider

Rambus, Inc.
HQ: USA
Rambus delivers industry-leading chips and silicon IP for the data center and AI infrastructure. With over three decades of advanced semiconductor experience, our products and technologies address the critical bottlenecks between memory and processing to accelerate data-intensive workloads. By enabling greater bandwidth, efficiency and security across next-generation computing platforms, we make data faster and safer.
