Vendor: VeriSilicon Microelectronics (Shanghai) Co., Ltd. Category: GNSS

GNSS RF IP - GLOBALFOUNDRIES 22nm FDX

GF22FDSOIV08_GNSS_01 is a GNSS RF receiver which is designed to support GPS L1, Beidou B1, Galileo E1 and Glonass G1 modes.

GlobalFoundries 22nm FDX Silicon Proven View all specifications

Overview

GF22FDSOIV08_GNSS_01 is a GNSS RF receiver which is designed to support GPS L1, Beidou B1, Galileo E1 and Glonass G1 modes. Moreover, L2, L5, B2 and B3 bands are separately supported by specific configurations. This RF receiver exposes an digital interface to output RX ADC bits to digital baseband. Through a slave Serial Peripheral Interface (SPI), baseband or can easily access the radio registers for control.

Key features

  • Process Technology: GLOBALFOUNDRIES 22nmFDX
  • Supply voltage: 0.9 ~1.8v
  • Operating temperature: -40°C to 85°C
  • Support frequency bands: GPS L1, Beidou B1, Galileo E1, Glonass G1, configurable to support L2 and L5
  • Configurable IF Bandwidth
  • High resolution ADC integrated
  • Low NF to 2.5dB
  • SPI slave interface for register configuration
  • Channel number is customizable

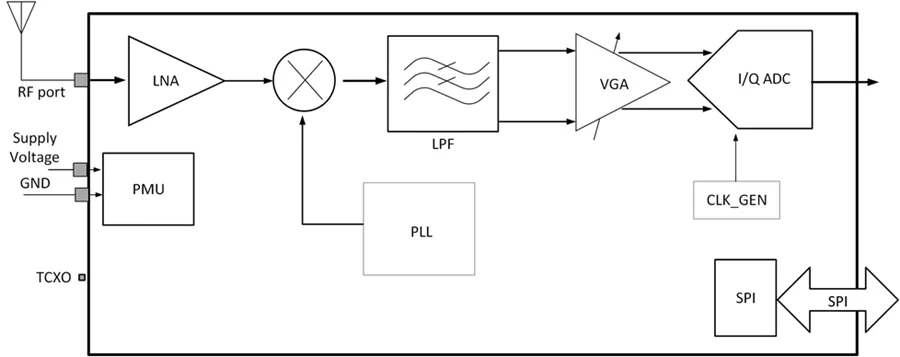

Block Diagram

What’s Included?

  • Design Kit & Tape-out Kit
  • IP Datasheet and Application

Files

Note: some files may require an NDA depending on provider policy.

Silicon Options

Foundry Node Process Maturity
GlobalFoundries 22nm FDX Silicon Proven
