L1 GPS/Galileo/BeiDou/GLONASS RF Front-end

The NT1020 is a multisystem receiver intended to perform a simultaneous reception, down conversion, filtering and amplifying of G…

Contact Provider Request Datasheet
TSMC 180nm RF Silicon Proven View all specifications

Overview

The NT1020 is a multisystem receiver intended to perform a simultaneous reception, down conversion, filtering and amplifying of GNSS GPS/Galileo/BeiDou and GLONASS L1/F1-band signals.
IC is fabricated on SiGe BiCMOS TSMC 0.18 um technology.

Key features

  • TSMC BiCMOS SiGe 180 nm technology
  • Single conversion superheterodyne receiver
  • Active antenna detector
  • Selectable front end modes: IQ GPS/Galileo/BeiDou and GLONASS, IQ GPS/Galileo/BeiDou only, IQ GLONASS only, GPS/Galileo/BeiDou and GLONASS with image-rejection
  • Integrated LNA with output matching to 50 Ohm
  • Integrated mixer preamplifier with programmable operating current
  • Image-rejection mixer
  • Integrated IF filter with automatic passband adjustment
  • Selectable channel output type: differential linear output or digital CMOS output with integrated 2-bit ADC
  • Fully integrated frequency synthesizer with internal PLL filter and clock driver for correlator
  • Fully integrated VCO with automatic adjustment system
  • PLL lock indicator
  • 3-wires serial peripheral interface for status monitoring, mode configuration and parameter adjustment
  • «Stand-by» mode with minimum current consumption

Block Diagram

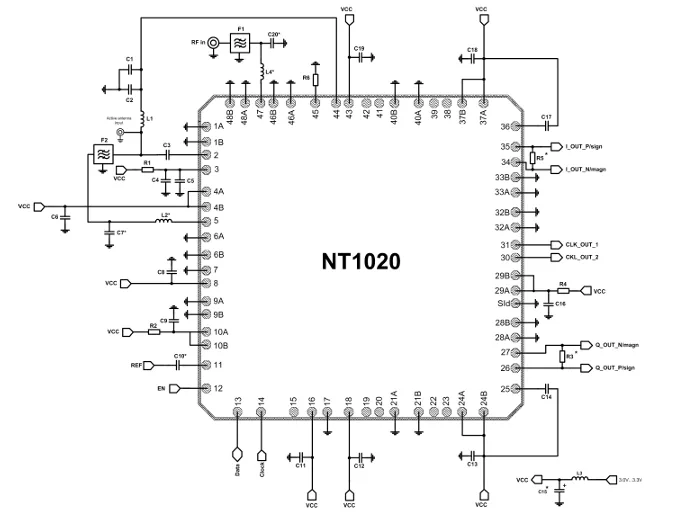

0180IP_NT1020 block diagram
