Combined GNSS/TV/FM multi-frequency receiver

NT2024 is a 4-channel RF front end designed to perform a simultaneous reception, conversion, filtering and amplifying of GPS/Gali…

Contact Provider Request Datasheet
TSMC 180nm BCDG2 Silicon Proven View all specifications

Overview

NT2024 is a 4-channel RF front end designed to perform a simultaneous reception, conversion, filtering and amplifying of

  • GPS/Galileo/GLONASS/BeiDou/IRNSS/QZSS signals of various frequency bands L1/L2/L3/L5/E1/E5a/E5b/E6/B1-C/B1-2/B2/B3
  • radio broadcasting signals of FM (65...110MHz) and VHF (130...220MHz) bands.
  • digital television signals of DVB-T/T2/H/C, DAB/DAB+/DMB/T-DMB, RAVIS, CMMB standards transmitted at FM (65...110MHz), VHF (160...240MHz), UHF (470...862MHz) bands, L-band (1430...1720MHz) and S-band (2170...2400MHz).

IC is fabricated on TSMC 0.18 µm SiGe BiCMOS technology.

Key features

  • TSMC BiCMOS SiGe 180 nm
  • GPS/Galileo/GLONASS/BeiDou/IRNSS/QZSS, FM radio & TV signals simultaneous reception
  • 4 independent channels: L1, L2 (or L3, or L5), FM, TV
  • Selectable modes “TV tuner”, “Navigation L1”, “Navigation L2 (L3, L5)” and “FM receiver” or any combination
  • Few external components
  • Selectable type of serial interface:
  • I2C for TV & FM and 3-wire SPI for GPS/Galileo/GLONASS/BeiDou/IRNSS/QZSS
  • I2C for all chip
  • 12x12mm QFN108 package

Block Diagram

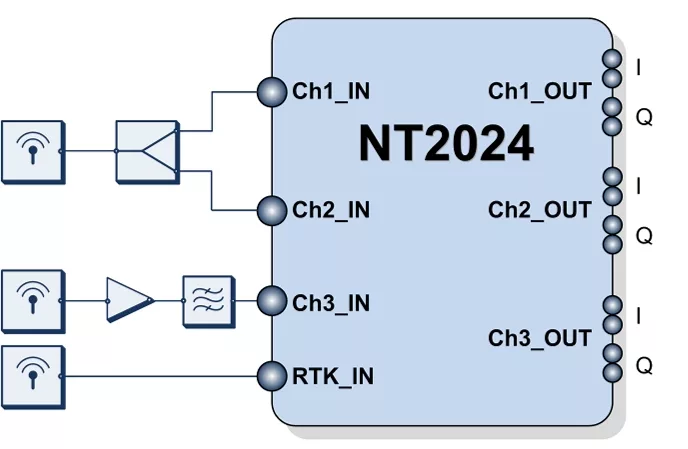

0180IP_NT2024 block diagram

Applications

  • Navigation systems
  • Portable receivers
  • Mobile communication
  • Measuring equipment

What’s Included?

  • Datasheet
  • Layout View (GDSII)
  • Evaluation kit based on packaged IC
  • Characterization Report
  • Behavioral Model
  • SPICE netlist (.cdl)
  • Integration Support
