Vendor: VeriSilicon Microelectronics (Shanghai) Co., Ltd. Category: Bluetooth

Dual-mode Bluetooth RF IP

Dual-mode Bluetooth RF IP is a 2.4 GHz ISM band RF transceiver IP designed for Bluetooth dual-mode applications.

GlobalFoundries 22nm FDX Silicon Proven View all specifications

Overview

Dual-mode Bluetooth RF IP is a 2.4 GHz ISM band RF transceiver IP designed for Bluetooth dual-mode applications. It is compliant with the Bluetooth specification (Bluetooth 5.3), and supports BR, EDR, and BLE. This IP is implemented using the FD-SOI 22nm process, rendering good performance and low power dissipation. It exposes a simple parallel digital interface to baseband modem for easy integration. A slave Serial Peripheral Interface (SPI) is used for connection to the baseband or external MCU.

Key features

  • Process Technology: GLOBALFOUNDRIES 22nmFDX
  • Supply voltage: 1.5 ~1.8v
  • Operating temperature: -40°C to 85°C
  • Support 6 modes including BT BR/EDR2M/EDR3M and BLE 1M/2M, Coded PHY S2/S8
  • Compatible with Bluetooth2.1-TS RF spec and BLE5-TS RFPHY Specification
  • TX output power up to 10dBm in BLE modes
  • Integrate 32MHz X0 and PLL for sampling clock
  • Sophisticated detector integrated for excellent Rx performance

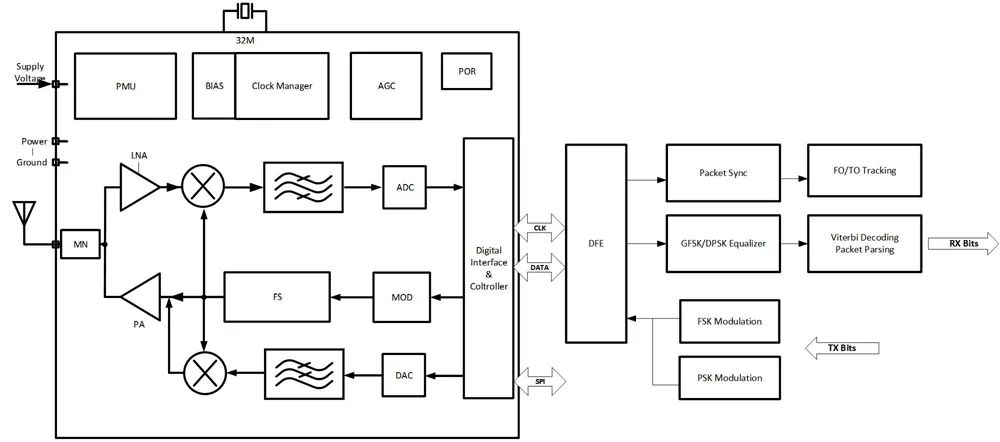

Block Diagram

What’s Included?

  • Design Kit & Tape-out Kit
  • IP Datasheet and Application

Files

Note: some files may require an NDA depending on provider policy.

Silicon Options

Foundry Node Process Maturity
GlobalFoundries 22nm FDX Silicon Proven

Specifications

Identity

Part Number
Dual-mode Bluetooth RF IP
Vendor
VeriSilicon Microelectronics (Shanghai) Co., Ltd.

Provider

VeriSilicon Microelectronics (Shanghai) Co., Ltd.
HQ: USA
