Vendor: T2M GmbH Category: Bluetooth

Bluetooth Dual Mode v5.4 / IEEE 15.4 PHY/RF IP in GF 22nm (Silicon Proven)

This Ultra-Low-Power (ULP) Bluetooth Dual-Mode RF transceiver IP is designed to support 2.4 GHz standards like Bluetooth Classic …

Contact Provider Request Datasheet
GlobalFoundries 22nm FDX Silicon Proven View all specifications

Overview

This Ultra-Low-Power (ULP) Bluetooth Dual-Mode RF transceiver IP is designed to support 2.4 GHz standards like Bluetooth Classic (BR/EDR), Bluetooth Low Energy(BLE), 802.15.4 PHY Layer (e.g. ZigBee), and proprietary standards.
This Dual-Mode RF IP targets by far the lowest power consumption (<3mW) together with state-of-the-art performances (sensitivity, interference rejection) and with minimal cost. Thanks to its built-in LDOs, its fully programmable modem, and its interface compatible with leading BT baseband controllers, this Dual-Mode RF IP is optimized for easy integration into ASICs and SoCs.

Key features

  • Bluetooth v5.4 Dual-Mode RF IP for Universal BT Audio Streaming
  • Flexible modem compatible with Bluetooth, 802.15.4-2011, and other modulations
  • Supports 3rd party Link Layer & Protocol Stack SW
  • Low Power Modes of Operation:
  • 0.6mW - BLE Only
  • 1.6mW - Dual-Mode (BLE+EDR)
  • Best-in-class Rx Sensitivity: BLE -98 dBm
  • EDR -94 dBm
  • High Tx power: +10 dBm
  • Long Range and Direction Finding (DF) options.
  • Industrial temperature range: -40°C to +125°

Block Diagram

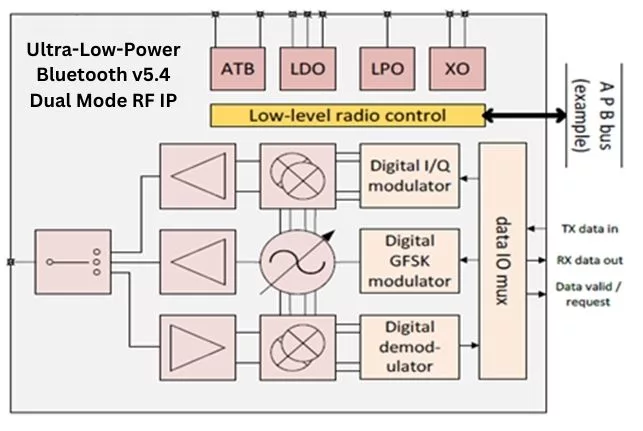

BT Dual Mode v5.4 RF PHY IP in GF 22fdx block diagram

Benefits

  • This RF has the Lowest Power Consumption in the market. Already licensed by multiple customers.

Applications

  • Hearing Aids
  • TWS Earbuds
  • Gaming Headsets
  • Wearables, connected sports equipment
  • Smart Watches
  • Indoor positioning
  • Asset tracking, Beacons
  • Wireless sensor networks
  • - Alarms and security systems

What’s Included?

  • GDS2
  • Behavioral model for the analog/RF portion
  • RTL for the digital portion
  • Related test benches
  • Documentation

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Silicon Options

Foundry Node Process Maturity
GlobalFoundries 22nm FDX Silicon Proven

Specifications

Identity

Part Number
BT Dual Mode v5.4 RF PHY IP in GF 22fdx
Vendor
T2M GmbH

Provider

T2M GmbH
T2M GmbH is the leading Global Technology Company supplying state of the art complex semiconductor connectivity IPs and KGDs, enabling the creation of complex connected devices for Mobile, IoT and Wearable markets. T2M's unique SoC White Box IPs are the design database of mass production RF connectivity chips supporting standards including Wifi, BT, BLE, Zigbee, NFC, LTE, GSM, GNS. They are available in source code as well as KGD for SIP / modules. With offices in USA, Europe, China, Taiwan, South Korea, Japan, Singapore and India, T2M’s highly experienced team provides local support, accelerating product development and Time 2 Market.
