Vendor: Cadence Design Systems, Inc. Category: Bluetooth

Simulation VIP for Bluetooth

Cadence Bluetooth Verification IP (VIP) is a part of the Cadence® wireless Verification IP portfolio.

Contact Provider Request Datasheet

Overview

Cadence Bluetooth Verification IP (VIP) is a part of the Cadence® wireless Verification IP portfolio. The Bluetooth VIP is compliant with the latest protocol updates for the Bluetooth 5.0 specification and supports functional models for HCI, LE Controllers and PHY. UART, USB or custom interface can be used as the transport layer for HCI. Bluetooth VIP can be used for verifying controller, PHY and Host independently or any valid combination of these blocks. It is targeted to support both Intellectual Property (IP) and System-On-Chip (SOC) verification needs, helping engineers to reduce time to first test, accelerate verification closure, and ensures end-product quality. The Bluetooth VIP is compatible with the industry-standard Universal Verification Methodology (UVM) and runs on all the leading simulators. Unlike other "wired" protocols, Bluetooth is wireless and a wireless channel model is provided to simulate this medium.

Supported specifications: Bluetooth specification versions 4.2 and 5.0.

Key features

  • Advertiser
    • High Duty, Low Duty, Directed, Undirected, Connectable, Non-connectable Advertisement
  • Scanner/Initiator
    • Active/Passive Scanning
  • Control Procedures
    • Support all Control Procedures, like
    • Connection Update and PHY Update
  • LE Encryption
    • Counter with Cipher Block Chaining-Message Authentication Code (CCM) Mode
  • LL Privacy
    • Generation of Resolvable Private Address.
  • Host Controller Interface
    • LE HCI commands/events/data fully supported.
  • HCI Transport Layer
    • UART/USB/User-Defined protocol as a HCI transport layer
  • 2 Mbps LE
    • 2 Mbps/s packets transmission and reception capability
  • LE Long Range
    • Configurable Coded PHY for FEC (2-Block) with S=2/S=8
  • LE Advertising Extensions
    • Advertisement/Connection on Primary/Secondary Channels using EXT/AUX PDUs, Periodic Advertisement
  • LE Channel Selection Algorithm#2
    • Counter based Channel Selection Algorithm for Secondary Channels
  • PHY
    • Full functional PHY (1M/2M/Coded) verification
    • GFSK Modulation-Demodulation
    • Direct test mode MSCs
  • PHY Adaptor
    • Connects Txd with appropriate Rxd based on RF Channel
    • Phy Adaptor supports multiple device connections to create scatter-net network
    • Mimics Collision scenarios

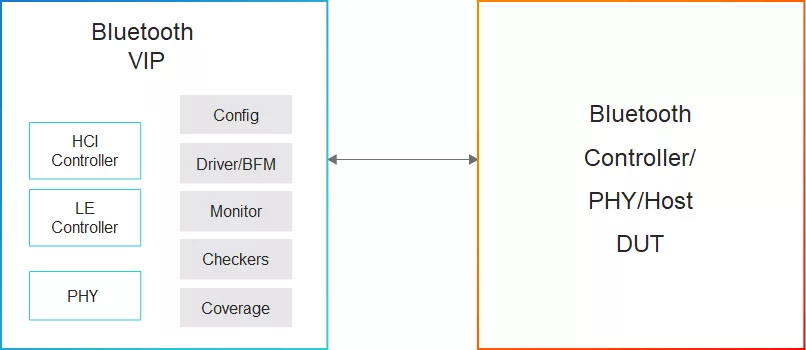

Block Diagram

Simulation VIP for Bluetooth block diagram

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
Simulation VIP for Bluetooth
Vendor
Cadence Design Systems, Inc.

Provider

Cadence Design Systems, Inc.
HQ: USA
