USB 2.0 On-The-Go (USB20OTG)

The USB 2.0 On-The-Go (OTG) IP Core is a 32-bit Avalon interface compliant core and supports ULPI interface.

Contact Provider Request Datasheet

Overview

The USB 2.0 On-The-Go (OTG) IP Core is a 32-bit Avalon interface compliant core and supports ULPI interface. It supports both USB Host and USB Device peripheral functionality. While acting as USB Host, it supports High Speed (HS), Full Speed (FS) and Low Speed (LS) modes. While acting as USB Device peripheral, it supports High Speed (HS) and Full Speed (FS) modes.

IP core has been implemented in Verilog HDL and its functionality has been verified using different test cases in simulation environment as well as on hardware. It is provided as Platform Designer (formerly Qsys) Ready component and hence can be easily integrated in Platform Designer system.

FPGA Supported:

 FPGA  Supported Device Family
 Intel

 Cyclone III, Cyclone IV, Cyclone V,  Stratix III, Stratix IV,

 Stratix V, Arria II, Arria V, MAX10

Key features

  • Supports UTMI + Low Pin interface (ULPI) interface
  • Supports Asynchronous Avalon clock interface
  • Configurable Memory depth
  • Supports software controlled PHY register access
  • Configurable to use as HOST only mode or DEVICE only mode
  • Ready to use component for Platform Designer
  • Meets Design Assistant guidelines
  • Host Controller
    • Supports Low speed (1.5 Mbps), Full speed (12 Mbps) and High Speed (480 Mbps) modes
    • Supports Control, Bulk and Interrupt transfers
    • Supports PING protocol
    • Supports SPLIT transaction for High Speed hub
    • Optimized TD (Transfer Descriptor) structure
    • Supports 16 Interrupt and 16 Aperiodic TDs
  • Device (Peripheral) Controller
    • Supports Full speed (12 Mbps) and High Speed (480 Mbps) modes
    • Supports Control, Bulk, Interrupt and Isochronous transfers
    • Capable to support up to 31 endpoints (1 default control endpoint + 15 IN/OUT endpoints)
    • Supports software configurable endpoints
    • Supports Suspend, Resume and Remote Wakeup features

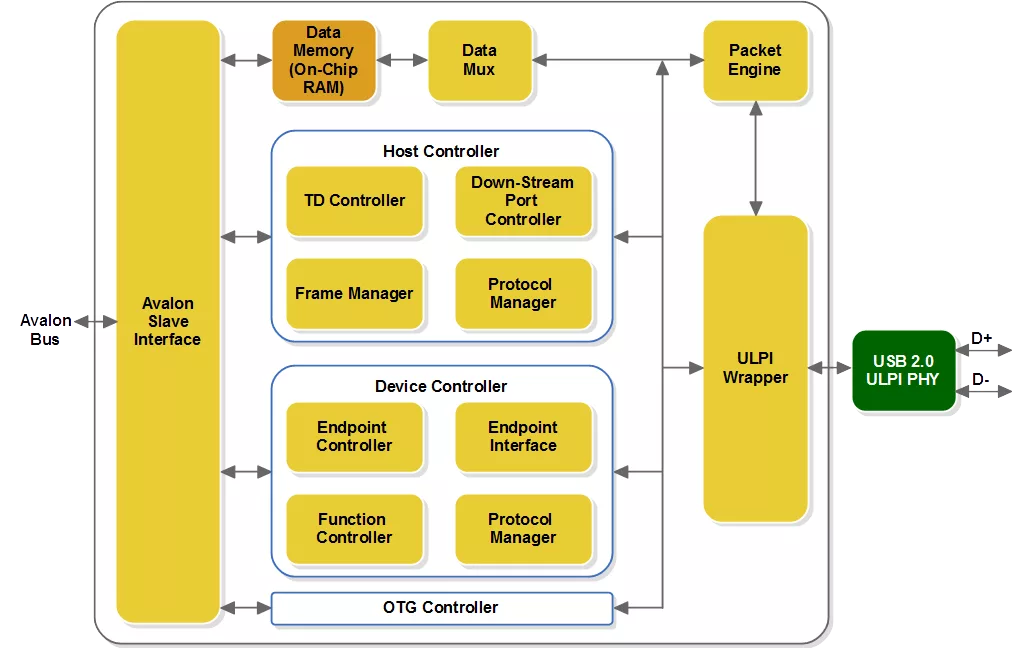

Block Diagram

IPRUSB2SFP013 block diagram

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
IPRUSB2SFP013
Vendor
System Level Solutions, Inc.

Provider

System Level Solutions, Inc.
HQ: USA
