Ultra Ethernet Verification IP

The Ultra Ethernet (UE) Verification IP provides an effective & efficient way to verify the components interfacing with Ethernet …

Contact Provider Request Datasheet

Overview

The Ultra Ethernet (UE) Verification IP provides an effective & efficient way to verify the components interfacing with Ethernet interface of an IP or SoC. The UE VIP is compliant with IEEE standard 802.3-2018 & UE Specifications V1.0. This VIP is light weight with easy plug-and-play interface so that there is no hit on the design cycle time.

Key features

  • Supports AI base profile.
  • UET features: Message semantics, Packet delivery, tx congestion control sublayers
  • PDS layer supports RUD, ROD and UUD PDS ordering modes.
  • PDS supports single and multiple PDC establishment.
  • SES supports relative and absolute addressing.
  • PDS supports various error packets generation and reception.
  • Supports SES-PDS logical interface
  • Ethernet supports 100G, 200G, 400G, 800G and 1.6T as per IEEE Std 802.3.
  • Supports Standard IP layer
  • Supports Standard DLL layer
  • Supports Standard ethernet PHY layer with 100G PHY lanes
  • Callback support in all Layers to provide user control.
  • Rich set of configurations and parameters.
  • Supports Dynamic as well as Static Error Injection scenarios.
  • On the fly protocol checking static and dynamic assertion.
  • Built in Coverage analysis.
  • Graphical analyzer to show transactions for easy debugging

Block Diagram

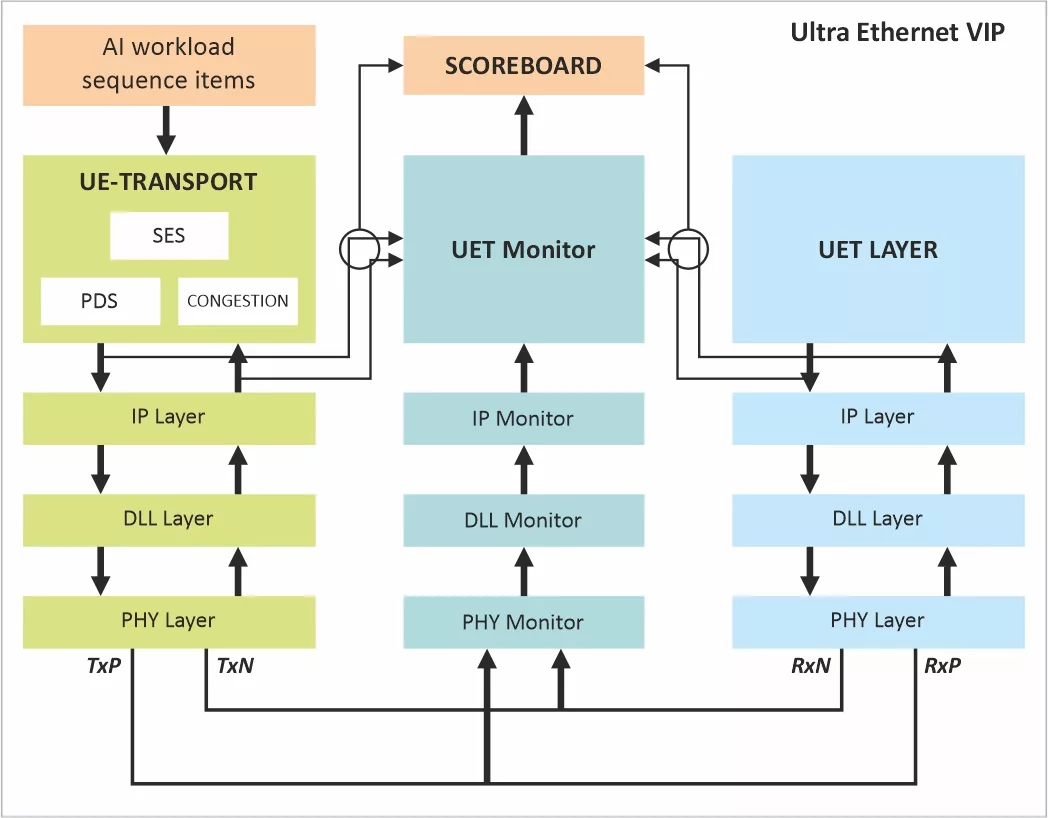

Ultra Ethernet (UEC) block diagram

Benefits

  • Available in native System Verilog (UVM/OVM/ VMM) and Verilog
  • Unique development methodology to ensure the highest levels of quality
  • Availability of Compliance & Regression Test Suites
  • 24X5 customer support
  • Unique and customizable licensing models
  • Exhaustive set of assertions and coverage points with connectivity example for all the components
  • Consistency of interface, installation, operation, and documentation across all our VIPs
  • Provide complete solution and easy integration in IP and SoC environment

What’s Included?

  • Deliverables Ultra Ethernet BFM’s for
    • PDS layer with Congestion Management
    • SES layer
    • IP layer
    • DLL Layer
    • Reconciliation layer
    • PCS layer
    • PMA layer
    • FEC layers (RS-FEC, BASE-R FEC)
    •  PMD layer
  • Ethernet 100G/200G/400G/800G/1.6T layered monitors and scoreboard Test environment and Test Suite-
    • Basic and Directed Protocol Tests
    • Random Tests- Error Scenario Tests
    • Assertions & Cover Point Tests
    • User Test Suite
  •  Integration Guide, User Manual and Release Note
  • GUI analyser to view simulation packet Flow

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
Ultra Ethernet (UEC)
Vendor
Truechip Solutions

Provider

Truechip Solutions
HQ: USA
Truechip is a leading provider of Design and Verification solutions – which help you to accelerate your design, lowering the cost and the risks associated in the development of your ASIC, FPGA and SoC. Truechip is a privately held company, with a global footprint and with a strong and experienced leadership team. Truechip was established in 2008 with a Mission to:
  • To create world class Verification IP Solutions
  • To provide expert consultancy to ASIC & SoC Design companies
  • To design SOCs from Architecture to Working Silicon
Our Vision is to:
  • To be the leading provider of Semiconductor IP Solutions
  • To be a one-stop-shop for Design and Verification
Our Guiding Principles are:
  • Customer Success
  • Commitment to Quality
    • Quality of Products
    • Quality of Engineers
  • Best in class Customer Support
  • Ethics and Integrity
We at Truechip leverage the extensive domain knowledge and expertise from current associations to provide complete set of design and verification solutions to our customers.
