Vendor:
Omni Design Technologies, Inc.
Category:
UCIe
UCIe RX Interface
The ODT- UCIE-UNI-RX-16GXX-S8 is a low power D2D receiver IP in Samsung 8nm process.
Overview
The ODT- UCIE-UNI-RX-16GXX-S8 is a low power D2D receiver IP in Samsung 8nm process. With 16 lanes at 16GT/s, up to 256GT/s (32GBps) of data can be received from another chip within the same package, up to 25mm. UCIe sideband communications facilitate link bring-up and training without needing other interfaces. This unidirectional IP receives data using the Raw UCIe transport for 100% bandwidth efficiency with no retries. The interface presents 512-bits of receive data output.
Key features
- Receive-only UCIe Rev1.1 with FIFO Interface
- Samsung 8nm process
- Low power UCIe D2D
- 1 pJ/bit at 0.7V
- Mainband: 16GT/s per lane, 16 Rx Lanes
- < 1E-15 BER
- Sideband: 800MT/s, Tx, Rx, TxClk, RxClk
- UCIe-Standard Package support
- Channel Length up to 25 mm
- Functional from -40°C to 125°C
- Bump pitch: 130 um
- 30V CDM ESD
- Beach Front Density: 112 Gbps/mm
- 8GHz Integer PLL
- 100MHz Internal Reference Clock
- Differential clock Forwarding
- Link Training
- Low latency, High BW efficiency
- Statistics counters and error reporting
- Self-calibration
- Runtime recalibration
- Clock phase control
- Sideband messaging for link training and parameter exchange
- Descrambling
- Loopback BIST for KGD
- 8-bit SECDED ECC correction on every 64 bits
- APB interface for register management

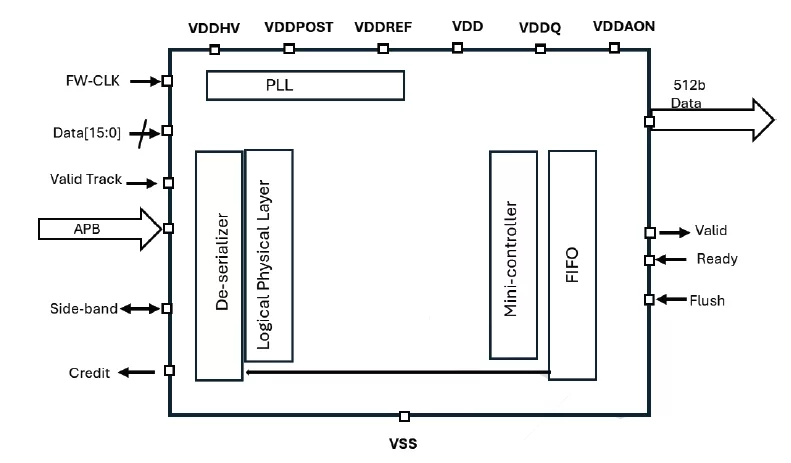

Block Diagram
ODT-UCIe-UNI-RX-16GXX-S8 block diagram
Applications
- D2D Connectivity for MCM applications
- High integration for size-constrained mobile, aeronautic, and automotive systems
- High bandwidth at low power for battery- and self-powered systems
- Helps integrate massive amounts of data for signal processing and AI
- Peripheral hubs and interconnects
What’s Included?
- Datasheet
- PHY: Hard Macro (GDSII) for the PHY
- FIFO: RTL, Synthesis Scripts
- Abstract View (LEF) for top level connectivity
- System Verilog Behavioral Model
- Integration and Customer Support
Files
Note: some files may require an NDA depending on provider policy.
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| Samsung | 8nm | 8nm 80 nm | — |
Specifications
Identity
Part Number
ODT-UCIe-UNI-RX-16GXX-S8
Vendor
Omni Design Technologies, Inc.
Provider
Omni Design Technologies, Inc.
