Vendor: Qualitas Semiconductor Category: UCIe

UCIe PHY (Die-to-Die) IP

The UCIe PHY IP enables high-bandwidth, low-latency die-to-die communication across chiplets, fully compliant with the Universal …

Contact Provider Request Datasheet

Overview

The UCIe PHY IP enables high-bandwidth, low-latency die-to-die communication across chiplets, fully compliant with the Universal Chiplet Interconnect Express™ (UCIe™) version 2.0 standard.

It supports both Standard and Advanced package types, offering the flexibility needed to build scalable, heterogeneous systems.
Designed for AI accelerators, data center SoCs, and custom multi-die architectures, this PHY IP delivers robust signal integrity and integration-ready support for next-generation chiplet-
based designs.

Key features

  • Compliant with UCIe v2.0, supporting 4/8/12/16/24/32GT/s data rates
  • for Standard Package up to 16 lanes / for Advanced Package up to 64 lanes
  • Provides a 1024-bit data bus width with high-throughput die-to-die communication
  • Includes automatic per-lane calibration and optional transmitter de-emphasis
  • Built-in Eye-Opening Monitor (EOM) and loopback test support for both internal and external testing
  • Supports subsystem optimization based on the customer’s chiplet architecture
  • Provides D2D-to-D2D SI/PI modeling and analysis, including full package and board considerations for customer-specific implementations

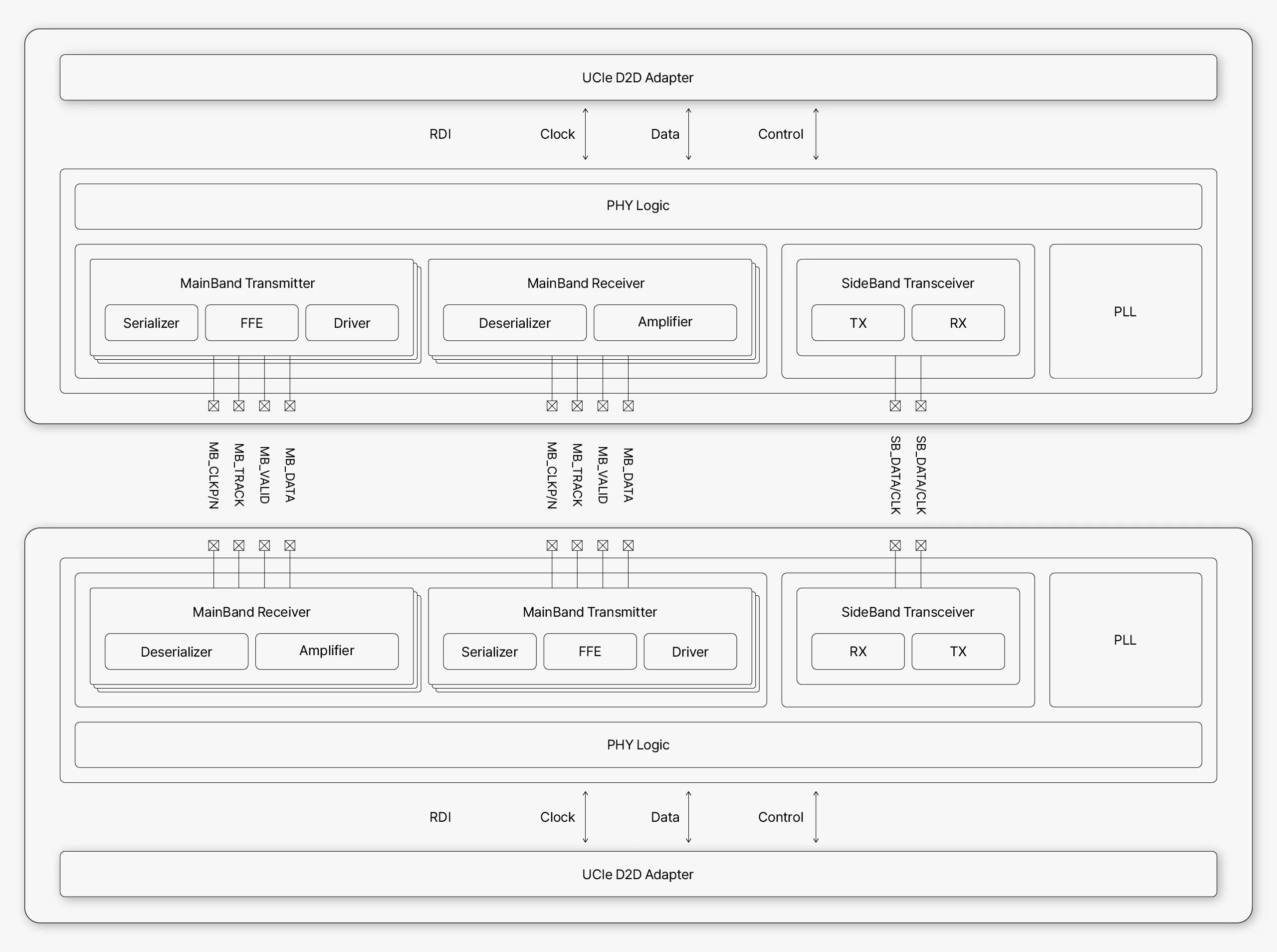

Block Diagram

UCIe PHY (Die-to-Die) block diagram

Specifications

Identity

Part Number
UCIe PHY (Die-to-Die)
Vendor
Qualitas Semiconductor
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Qualitas Semiconductor
HQ: South Korea
Qualitas Semiconductor is a leader in high-speed interconnect technology, which is at key infrastructure of the 4th Industrial Revolution, Encompassing AI, mobile devices, automotive systems, and displays. We specialize in high-speed interconnect circuit design, as well as ultra-fine semiconductor process design and verification. We operate our business through the licensing of high-speed interface IP and by providing comprehensive design services. Moreover, we have established a robust design methodology to ensure high-reliability in ultra-fine semiconductor processes. With a proven track record in developing and mass-producing cutting-edge semiconductors, our expertise spans the most advanced technologies.
