UALink IP Solution
The UALink IP solution, consisting of UALink Controller, PHY, and verification IP, is designed to meet the performance requiremen…
Overview
The UALink IP solution, consisting of UALink Controller, PHY, and verification IP, is designed to meet the performance requirements for AI Accelerator to AI Accelerator connections in the scale-up of AI clusters, compliant to the upcoming UALink Consortium specification. The best-in-class IP solution provides a standards-based option for AI hardware required to scale-up high density AI Accelerator to AI Accelerator connections, supporting rates up to 200Gbps per lane. Synopsys’ complete UALink IP delivers a low-risk, standards solution optimized for power, performance, area and latency. Leveraging Synopsys’ extensive PCIe and Ethernet expertise and a proven track record in high-speed networking, AI and HPC SoC designs, designers can accelerate time-to-market and develop best in class AI hardware infrastructure, enabling a path to first pass silicon success.
Key features
- Lightweight, low latency IP solution for XPU to XPU interconnects optimized for AI workloads
- Fully integrated IP solution for AI accelerators (XPUs), GPUs, and switches
- Enables maximum throughput with up to 200Gbps per lane
- Supports memory sharing capabilities to expand compute and memory resources from XPU to XPU
- Supports high density, high radix networking infrastructure for AI workloads
- Enables full hardware security needs for UALink specifications

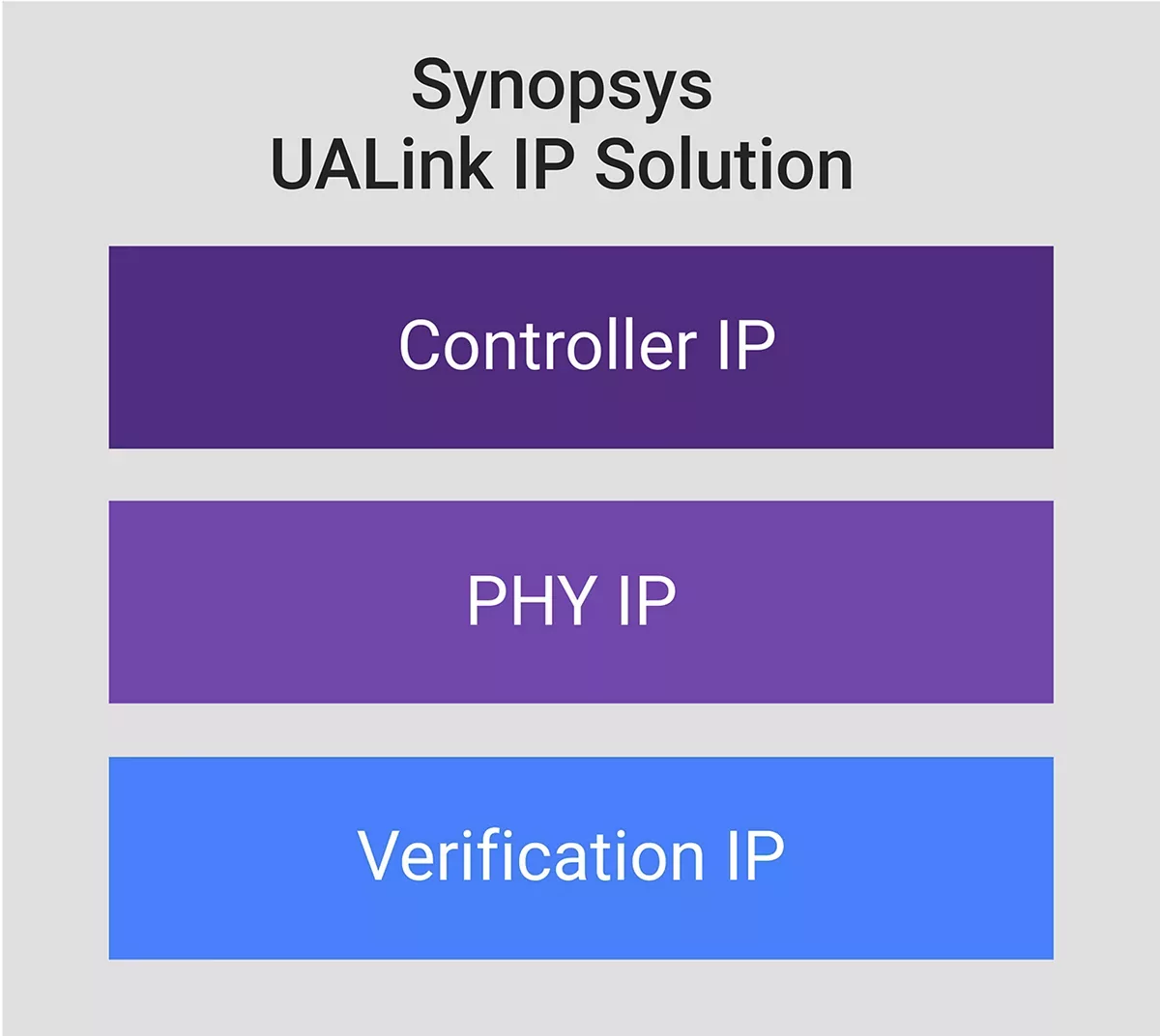

Block Diagram
ultra_accelerator_link_cs block diagram
Benefits
- Maximize AI cluster throughput with up to 200 Gbps per lane
- Unlock memory sharing and extend compute resources across accelerators
- Speed verification time with built-in protocol checks
- Reduce integration risk with complete, standards-based IP solution
Files
Note: some files may require an NDA depending on provider policy.
Specifications
Identity
Part Number
ultra_accelerator_link_cs
Vendor
Synopsys, Inc.
Type
Silicon IP
Provider
Synopsys, Inc.
HQ:
USA
Synopsys is a leading provider of high-quality, silicon-proven semiconductor IP solutions for SoC designs. The broad Synopsys IP portfolio includes logic libraries, embedded memories, analog IP, wired and wireless interface IP, security IP, embedded processors and subsystems. To accelerate IP integration, software development, and silicon bring-up, Synopsys’ IP Accelerated initiative provides architecture design expertise, pre-verified and customizable IP subsystems, hardening, and signal/power integrity analysis. Synopsys' extensive investment in IP quality, comprehensive technical support and robust IP development methodology enables designers to reduce integration risk and accelerate time-to-market.
