Temperature Sensor on Samsung 4nm, LN04LPP
The temperature sensor indicates the junction temperature as a 9-bit binary digital code.
Overview
The temperature sensor indicates the junction temperature as a 9-bit binary digital code. It contains a main sensor, remote probes and an Analog-to-Digital Converter (ADC). It is possible to monitor multiple spots via remote probes. It has a resolution of 0.5℃/1-code and operates within a junction temperature range of -40℃ to 125℃.
Key features
- 4nm Low Power Plus (LN04LPP) CMOS device technology
- Dual power supply: 1.2V±10%, 0.75V±10%
- Operating junction temperature(TJ): -40℃ to125℃
- Resolution: 0.5°C
- Accuracy: ±3°C
- Junction temperature(TJ) sensing
- Multiple hot spots monitoring via remote probes

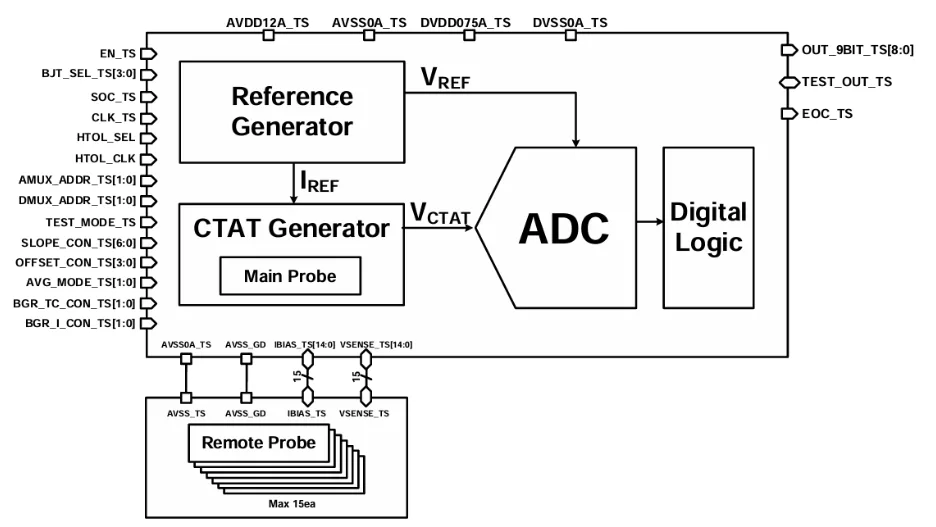

Block Diagram
Temperature Sensor on Samsung 4nm, LN04LPP block diagram
Benefits
- Low Power
- Low Area
Applications
- Mobile
- Automotive
What’s Included?
- FE(Front-End) : LEF, LIBERTY, MODEL, TB FUNCTION, TB VECTOR GEN
- BE(Back-End) : CIR, DFM, DRC, GDS, LVS
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| Samsung | 4nm | SF4 | — |
Specifications
Identity
Part Number
Temperature Sensor on Samsung 4nm, LN04LPP
Vendor
SKAIChips
Provider
SKAIChips
