Vendor:
Racyics GmbH
Category:
Temperature Sensor
Voltage and Temperature Sensor with integrated ADC - GlobalFoundries® 22FDX®
ri_vtsens_gf22fdx is an integrated (supply-) voltage and temperature sensor IP with integrated ADC and band-gap voltage reference.
Overview
ri_vtsens_gf22fdx is an integrated (supply-) voltage and temperature sensor IP with integrated ADC and band-gap voltage reference. The delta-sigma analog-to-digital converter (ADC) has 4 input channels and a 1st order SC-modulator. One input channel is used as a reference voltage and cannot be used for external measurement. The configurable oversampling ratio (OSR) offers different resolutions with adjusted conversion time. The analog part of the circuit operates from a supply of 1.62 V to 1.98 V (±10% of 1.8 V IO supply). Target application are voltage and temperature monitoring in systems-on-chip. The IP is divided into a full-custom part and a RTL description of state machine and decimation filter.
Key features
- Voltage and temperature monitoring
- 3 single-ended voltage measurement inputs
- Operating temperature range: -40°C to 150°C
- Temperature measurement with accuracy up to 1°K ± 1°K change in temperature
- Measure voltage up to supply rail with voltage accuracy up to 2 mV change
- 1st order Delta-Sigma ADC with configurable oversampling ratio
- Resolution up to 12 bit
- Conversion time ≈ 3.1 ms for OSR of 1024
- Typical power consumption: active = 60 µW, standby = 0.3 µW
- Integrated voltage reference source
- Register interface for data readout
- Delivered as hard IP
- Total size: 139.4 µm x 75.28 µm = 10,494.032 µm²

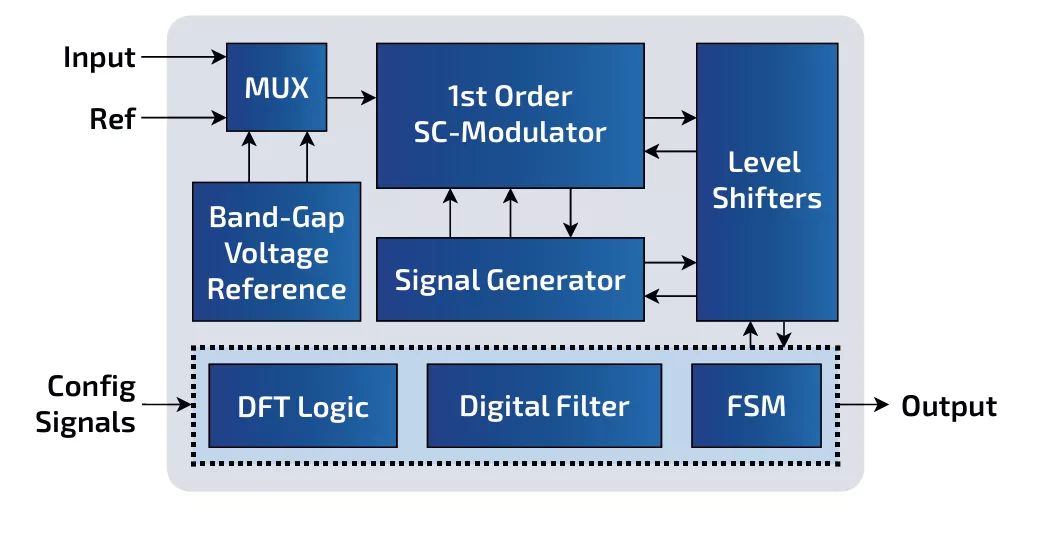

Block Diagram
ri_vtsens_gf22fdx block diagram
What’s Included?
- Datasheet with integration guidelines
- APL views for EMIR analysis
- GDSII layout
- LEF abstract
- .lib/.db timing files
- LVS netlist
- Verilog behavioral simulation model
Files
Note: some files may require an NDA depending on provider policy.
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| GlobalFoundries | 22nm | FDX | — |
Specifications
Identity
Part Number
ri_vtsens_gf22fdx
Vendor
Racyics GmbH
Provider
Racyics GmbH
HQ:
Germany
Racyics is an experienced System-on-Chip design service provider with focus on advanced semiconductor nodes. We offer our customers a wide range of design services including custom IP and turnkey SoC solutions.
