Temperature Sensor on Samsung 14nm, LN14LPP
The temperature sensor indicates the junction temperature as a 12-bit binary digital code.
Overview
The temperature sensor indicates the junction temperature as a 12-bit binary digital code. It contains a main sensor, remote probes and an ADC. It is capable of monitoring multiple spots via remote probes. It has a resolution of 0.0625°C /1-code and operates within a junction temperature range of -40°C to 125°C.
Key features
- 14nm Low Power Plus (LN14LPP) CMOS device technology
- Dual power supply: 1.8V±10%, and 0.8V-10% to 0.9V+5%
- Operating junction temperature (TJ): -40°C to 125°C
- Resolution: 0.0625°C
- Accuracy: ±3°C
- Capable of sensing junction temperature (TJ)
- Supports monitoring multiple hot spots through remote probes

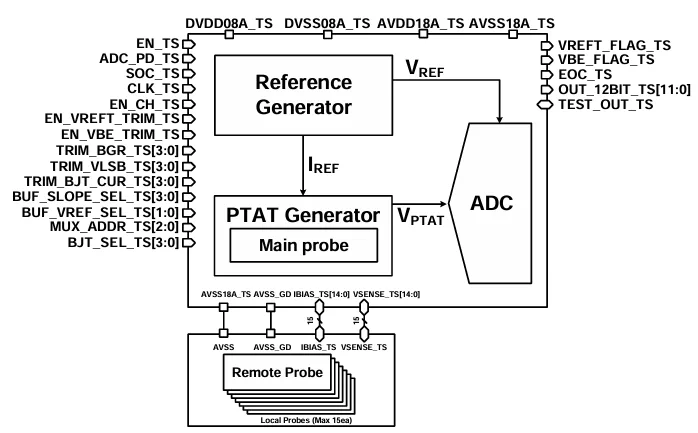

Block Diagram
Temperature Sensor on Samsung 14nm, LN14LPP block diagram
Benefits
- Low Power
- Low Area
Applications
- Mobile
- Automotive
- HPC
What’s Included?
- FE(Front-End) : LEF, LIBERTY, MODEL, TB FUNCTION, TB VECTOR GEN, TWRAP
- BE(Back-End) : CIR, DFM, DRC, GDS, LVS
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| Samsung | 14nm | 14nm 140 nm | — |
Specifications
Identity
Part Number
Temperature Sensor on Samsung 14nm, LN14LPP
Vendor
SKAIChips
Provider
SKAIChips
HQ:
Republic of Korea
Creative and Innovative IC Product Development at a World-Class Level
As the Fourth Industrial Revolution calls for innovative IC supplies to meet new technological demands, SKAIChips will maximize customer satisfaction and contribute to improved profitability for our partners and shareholders by producing applied products through our RF Solution, Power Solution, and AI Solution. Furthermore, we will continue to strive toward becoming a global enterprise with differentiated technological expertise, driven by creative ideas and unwavering research and development.
