Simulation VIP for HyperRam
HyperRam in production since 2018 for many production designs.The Cadence® Memory Model Verification IP (VIP) for HyperRam provid…
Overview
HyperRam in production since 2018 for many production designs.
The Cadence® Memory Model Verification IP (VIP) for HyperRam provides verification of the HyperRam controller using the HyperBus as well as xSPI Interface protocol. It provides a mature, highly capable compliance verification solution applicable to intellectual property (IP), system-on-chip (SoC), and system-level verification. The VIP for HyperRam is compatible with the industry-standard Universal Verification Methodology (UVM), runs on all leading simulators, and leverages the industry-standard Cadence Memory Model core architecture, interface, and use model.
Supported specification: Features of Cypress (Infineon) and Winbond. The Cypress (Infineon) HyperRam device supports both interfaces: HyperBus as well as Octal Interface as HyperRam1.0 and HyperRam2.0 respectively.
Key features
- Density
- From 64Mb to 128Mb
- Reset
- Hardware Reset via RESET# pin
- Read and Write
- Write Enable and Write Disable commands to enable WEL latch for xSPI Octal Interface Support - Cypress HyperRAM 2.0
- Supports Read/Write operation for registers: ID0 and ID1 (Read Only) and CR0/1 (Read/Write)
- For xSPI Octal Interface Support - Cypress HyperRAM 2.0: Read and Write any register and Read ID Select Burst type from CR1[7] bit
- Burst
- Wrapped burst with lengths of 16, 32, 64, and 128 bytes, Linear burst, hybrid burst: One wrapped burst followed by linear burst.
- DCARS
- DDR Center-Aligned Read Strobe Functionality for Cypress
- Extended I/O Support
- Winbond Specific: DQ[15:0] and RWDS[1:0]
- Winbond Specific
- Hybrid Sleep Mode, Partial Array Refresh, Master Clock Type, and Software Reset
- Power Modes and Software Reset
- For xSPI Octal Interface Support - Cypress HyperRAM 2.0, support of Deep Power Down and Software Reset: Reset and Reset Enable

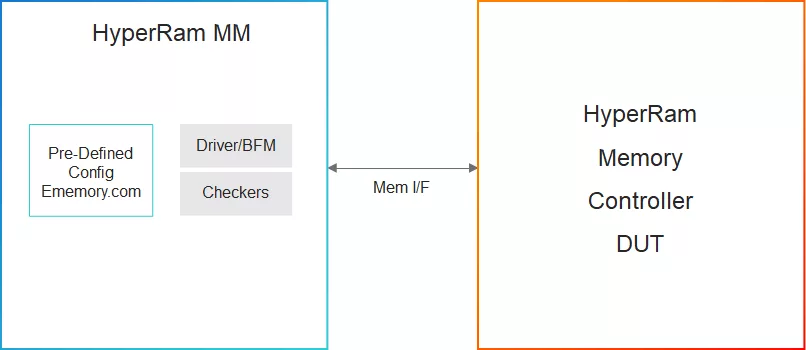

Block Diagram
Simulation VIP for HyperRam block diagram
Files
Note: some files may require an NDA depending on provider policy.
Specifications
Identity
Part Number
Simulation VIP for HyperRam
Vendor
Cadence Design Systems, Inc.
Provider
Cadence Design Systems, Inc.
HQ:
USA
