SSRAM Memory Model
SSRAM Memory Model provides an smart way to verify the SSRAM component of a SOC or a ASIC.
Overview
SSRAM Memory Model provides an smart way to verify the SSRAM component of a SOC or a ASIC. The SmartDV's SSRAM memory model is fully compliant with standard SSRAM Specification and provides the following features. Better than Denali Memory Models.
SSRAM Memory Model is supported natively in SystemVerilog, VMM, RVM, AVM, OVM, UVM, Verilog, SystemC, VERA, Specman E and non-standard verification env
SSRAM Memory Model comes with optional Smart Visual Protocol Debugger (Smart ViPDebug), which is GUI based debugger to speed up debugging.
Key features
- Supports SSRAM memory devices from all leading vendors.
- Supports 100% of SSRAM protocol standard of SSRAM specifications.
- Supports all the SSRAM commands as per the specs.
- Supports Continuous Data Transfer (CDT) architecture.
- Supports up to 250MHz.
- Supports following burst type
- Linear
- Interleave
- Supports separate address strobes.
- Supports synchronous self timed writes.
- Supports asynchronous output enable.
- Supports single cycle chip select.
- Supports burst read access.
- Supports burst write access.
- Supports READY status.
- Supports byte write enables.
- Supports "ZZ" sleep mode operation for partial power down.
- Supports "SHUTDOWN" mode operation for deep power-down.
- Checks for following
- Check-points include power up initialization and power off rules.
- Read/Write Command rules etc.
- All timing violations.
- Supports for full-timing as well as behavioral versions in one model.
- Supports for all timing delay ranges in one model: min, typical and max.
- Protocol checker fully compliant with SSRAM Specification.
- Models, detects and notifies the test bench of significant events such as transactions, warnings, timing and protocol violations.
- Constantly monitors SSRAM behavior during simulation.
- Built in functional coverage analysis.
- Supports Callbacks, so that user can access the data observed by monitor.

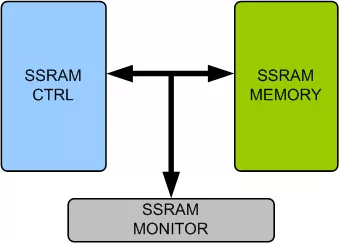

Block Diagram
SSRAM Memory Model block diagram
Benefits
- Faster testbench development and more complete verification of SSRAM designs.
- Easy to use command interface simplifies monitor control and configuration.
- Simplifies results analysis.
- Runs in every major simulation environment.
What’s Included?
- Complete regression suite containing all the SSRAM testcases.
- Examples showing how to connect and usage of Model.
- Detailed documentation of all class, task and function's used in verification env.
- Documentation also contains User's Guide and Release notes.
Files
Note: some files may require an NDA depending on provider policy.
