Simulation VIP for HyperFlash
Hyperflash in production since 2018 for many production designs.The Cadence® Memory Model Verification IP (VIP) for HyperFlash pr…
Overview
Hyperflash in production since 2018 for many production designs.
The Cadence® Memory Model Verification IP (VIP) for HyperFlash provides verification of HyperFlash Controller using the HyperBus protocol. It provides a mature, highly capable compliance verification solution applicable to intellectual property (IP), system-on-chip (SoC), and system-level verification. The VIP for HyperFlash is compatible with the industry-standard Universal Verification Methodology (UVM), runs on all leading simulators, and leverages the industry-standard Cadence Memory Model core architecture, interface, and use model.
Supported specification: Features of Cypress specification Document Number: 001-99198 Rev. *H Revised February 06, 2017.
Key features
- Density
- From 128Mb to 512Mb
- General Functionality
- Supports Status Register Read and Clear commands
- Supports Program, Read commands for POR Timer Register
- Supports Interrupt Control and Status Registers
- Supports Volatile and Non-Volatile Configuration Control Registers
- Read memory array data, Program data into memory, Program data to flash memory
- Supports commands for Erase, Suspend and Resume, Blank check, Enter Deep Power Down
- Support Program buffer to flash confirm command
- Support Device Input and Output timing and Variants memory operations timing
- Burst
- Wrapped burst: Supports burst lengths: 16 bytes (8 clocks), 32 bytes (16 clocks), 64 bytes (32 clocks), linear burst and hybrid burst: One wrapped burst followed by linear burst
- Reset Output Pin Functionality
- Supports Reset functionality through: Hardware Reset (via RESET# pin), Reset and Address Space Overlay (ASO) Exit (0xF0) command, System-level power-on reset via RSTO#
- Interrupt
- Supports INT# output to generate external interrupt during: Busy to Ready Transition and ECC detection
- DDR Center Aligned Read Strobe
- Supports phase shifting of the RWDS signal with respect to the read data outputs using Phase Shifted Clock input PSC and PSC# pins
- ASO Capability
- Command support for for various ASOs such as: ID-CFI, ASPR ASO, Password ASO, PPB ASO, PPB Lock Bit ASO and DYB ASO
- ECC
- ECC Status Enter, ECC Status Read, Error Lower Address Register, Error Upper Address Register, Read Error Detection Counter and Clear ECC Errors
- CRC
- CRC ASO Entry, Load CRC Start/End Address, CRC Suspend, Array Read, CRC Resume, Read Check-Value Low/High Result Register

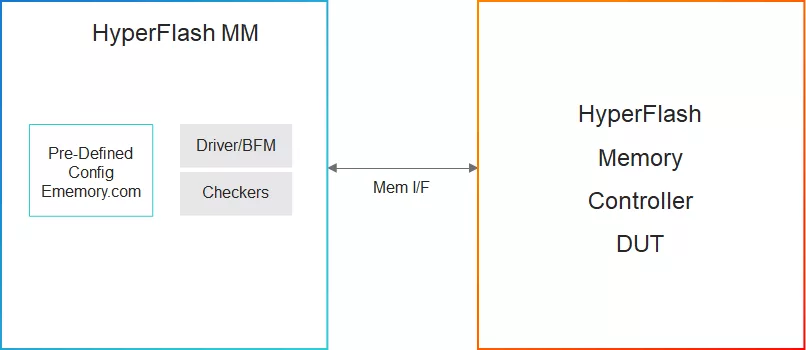

Block Diagram
Simulation VIP for HyperFlash block diagram
