PVT Sensor on Samsung 4nm, LN04LPP
The PVT sensor indicates the junction temperature as a 12-bit binary digital code.
Overview
The PVT sensor indicates the junction temperature as a 12-bit binary digital code. It contains a main sensor, remote probes and an Analog-to-Digital Converter (ADC). It is possible to monitor multiple spots via remote probes. It has a resolution of 0.0625℃/1-code and operates within a junction temperature range of -40~125℃.
Key features
- 4nm Low Power Plus (LN04LPP) CMOS device technology
- 1.2V±10%, 0.75V±10% dual power supply
- Operating junction temperature(TJ): -40~125℃
- PVT sensor resolution: 0.0625℃
- PVT sensor accuracy: ±3℃
- Voltage sensing range: 0.25~0.95V
- Voltage sensor resolution: 0.5mV
- Process sensor type: ULVT, SLVT, LVT, RVT
- Junction temperature(TJ) sensing
- Multiple hot spots monitoring via remote probes
Block Diagram

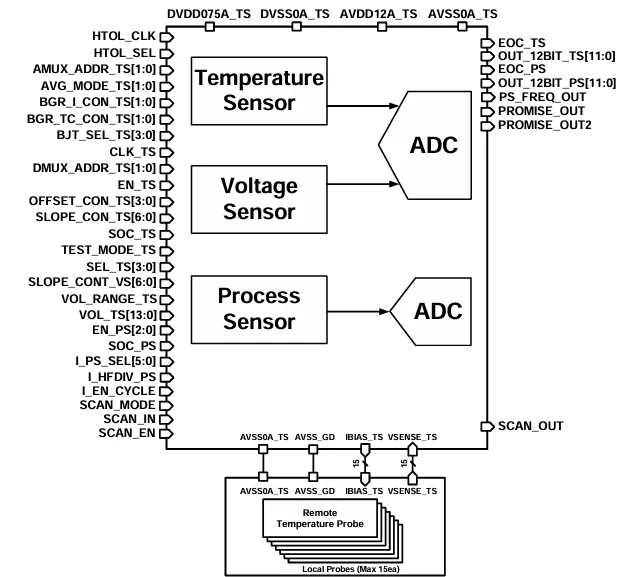

PVT Sensor on Samsung 4nm, LN04LPP block diagram
Benefits
- Low Power Consumption
- small area
Applications
- Mobile/Consumer/Automotive/HPC
What’s Included?
- FE (Front End) : MODEL, TB FUNCTION, LIBERTY, TB VECTOR, LEF
- BE (Back End) : CIR, GDS, LVS, DRC, DFM
- Document : Datasheet, Test guide, User guide, Release note
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| Samsung | 4nm | SF4 | — |
Specifications
Identity
Part Number
PVT Sensor on Samsung 4nm, LN04LPP
Vendor
SKAIChips
Provider
SKAIChips
HQ:
Republic of Korea
Creative and Innovative IC Product Development at a World-Class Level
As the Fourth Industrial Revolution calls for innovative IC supplies to meet new technological demands, SKAIChips will maximize customer satisfaction and contribute to improved profitability for our partners and shareholders by producing applied products through our RF Solution, Power Solution, and AI Solution. Furthermore, we will continue to strive toward becoming a global enterprise with differentiated technological expertise, driven by creative ideas and unwavering research and development.
Learn more about PVT Monitor IP core
