OTN Processor
The Gemini TPS5201MP OTN processors IP cores are a member of Tera-Pass’ product family for access applications.
Overview
The Gemini TPS5201MP OTN processors IP cores are a member of Tera-Pass’ product family for access applications. Gemini TPS5201MP processors support the functionality required by access networks and by premium services networks. Gemini TPS5201MP client ports support one or two Ethernet/SDH signals, provides EOS functionality, and conveys its payloads to an OTU1/OTU0 (2.7/1.3 Gbps) bearer. The OTU1/OTU0 signal may operate in a 1+1 protection configuration.
Gemini TPS5201MP IP Cores support 2 Ethernet FE/GE or SDH STM1/STM4 Client Ports and 2 OTN Line Ports. The SDH signals are monitored and then they are GMP mapped to ODU0 containers. For FE/GE, Gemini TPS5201MP generates the RMON statistics associated with each signal. Gemini TPS5201MP can map the FE/GE signals transparently (GMP/GFP-T) or GFP-F to ODU0 containers. Since in many applications there will be Ethernet switches implementing bandwidth limiting fronting it, the Gemini TPS5201 can map the FE/GE signals to multiple SDH VC4/VC3/VC12 component signals implementing a VCAT (Virtual Concatenation) capability. In case that the number of VC containers needs to be adjusted, Gemini TPS5201MP also provides an LCAS (Link Capacity Adjustment Scheme) capability. The resultant multiplicity of VC4/VC3/VC12 containers can be multiplexed to STM1 or STM4 signals. The ODU containers are then transported to their destination by OTU signals. Gemini TPS5201MP can multiplex 2 ODU0 containers to an ODU1 and transport the signals with an OTU1 bearer or transport a single ODU0 container over an OTU0 bearer.
Gemini TPS5201MP IP Cores support 2 Ethernet FE/GE or SDH STM1/STM4 Client Ports and 2 OTN Line Ports. The SDH signals are monitored and then they are GMP mapped to ODU0 containers. For FE/GE, Gemini TPS5201MP generates the RMON statistics associated with each signal. Gemini TPS5201MP can map the FE/GE signals transparently (GMP/GFP-T) or GFP-F to ODU0 containers. Since in many applications there will be Ethernet switches implementing bandwidth limiting fronting it, the Gemini TPS5201 can map the FE/GE signals to multiple SDH VC4/VC3/VC12 component signals implementing a VCAT (Virtual Concatenation) capability. In case that the number of VC containers needs to be adjusted, Gemini TPS5201MP also provides an LCAS (Link Capacity Adjustment Scheme) capability. The resultant multiplicity of VC4/VC3/VC12 containers can be multiplexed to STM1 or STM4 signals. The ODU containers are then transported to their destination by OTU signals. Gemini TPS5201MP can multiplex 2 ODU0 containers to an ODU1 and transport the signals with an OTU1 bearer or transport a single ODU0 container over an OTU0 bearer.
Block Diagram

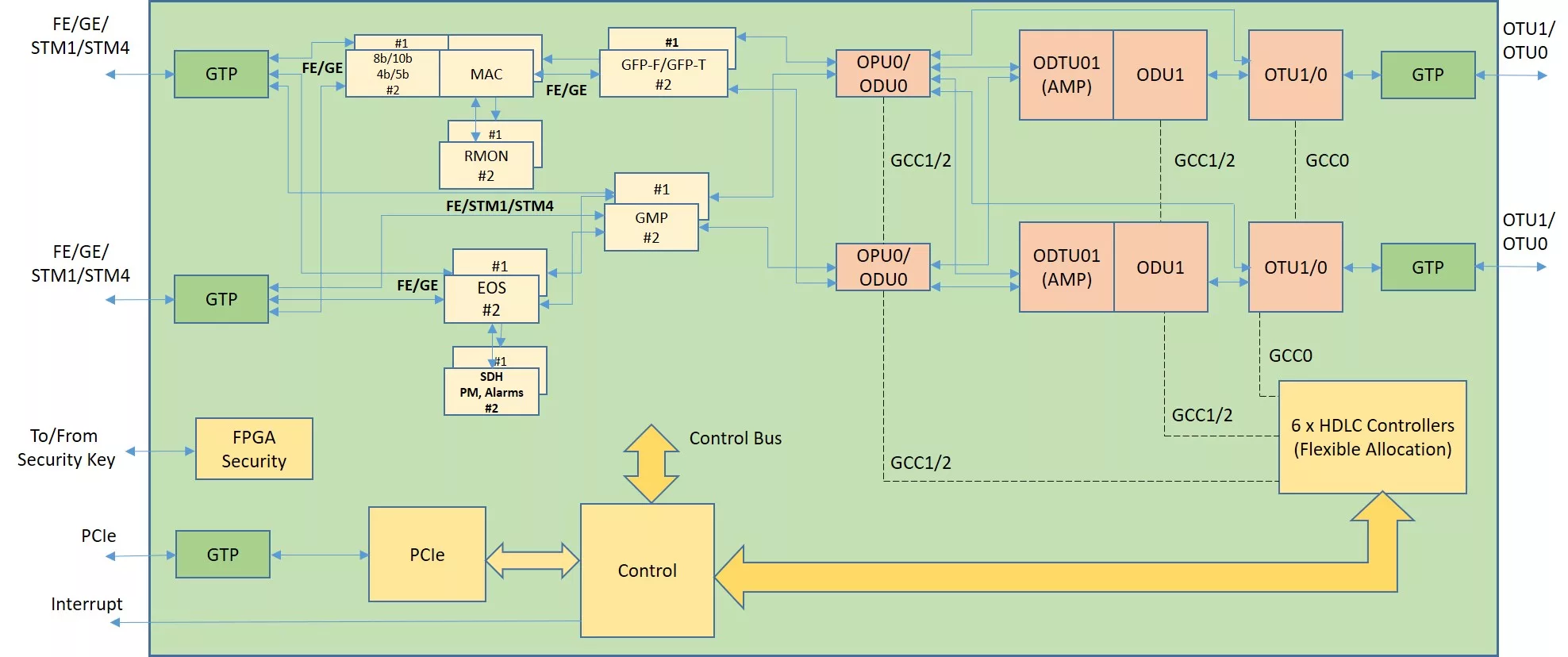

Gemini TPS5201MP block diagram
Files
Note: some files may require an NDA depending on provider policy.
Specifications
Identity
Part Number
Gemini TPS5201MP
Vendor
Tera-Pass
Provider
Tera-Pass
HQ:
Israel
Tera-Pass develops advanced Optical Transport Network (OTN) processors that enable Network Equipment (NE) vendors to build optimized, resilient and cost-effective wireline and wireless access and metro systems.
Tera-Pass offers a unique combination of both ASIC (Apodis) and IP Core (Gemini, Zephyr, Orion, Scorpion) based product families, enabling its Network Equipment (NE) vendors customers to select the most optimal solution for their needs. The various members of each product family are designed bearing in mind software and hardware commonality, simplifying the transition from one family member to another. Apodis OTN processors are general-purpose devices addressing capacities in the range of 10G-40G.
Gemini and Zephyr IP Cores address access and premium services applications.
Orion IP Cores address the transport of CPRI signals over OTU2r bearers. Orion IP Cores implement a novel ITU-T endorsed OTN technology that provides a unique solution for the transport of CPRI 4G signals over optical links.
Scorpion IP Cores address the transport of Client Services over OSU (Optical Service Units) variable bandwidth containers, following the evolution of the relevant ITU-T standards. Scorpion processors support advanced features such as hitless bandwidth adjustment of the OSUs allocated for the transport of packet-based Client Services.
Along with its various product families of OTN processors, Tera-Pass also offers an extensive range of design-support tools and services, intended to simplify and ease the integration of Tera-Pass’ products with our customers’ software and hardware systems.
