MIPI DPHY & LVDS Transmit Combo on GF55LPe

This MIPI DPHY/LVDS Combo Tx PHY IP is designed to the MIPI D-PHY 1.2 specifications and LVDS specifications.

Contact Provider Request Datasheet
GlobalFoundries 55nm LPe View all specifications

Overview

This MIPI DPHY/LVDS Combo Tx PHY IP is designed to the MIPI D-PHY 1.2 specifications and LVDS specifications. This IP supports up to 1.5Gbps for both MIPI and LVDS data rate. This IP can be applied to OpenLDI v0.95 also. This IP includes two PLLs. One is a generic PLL for MIPI clock generation, and the other is an X8/X7 multiplier PLL for serial clock generation.

Key features

  • MIPI D-PHY version 1.2 compliant PHY transmitter
  • OpenLDI version 0.9 compliant LVDS transmitter
  • Consists of 6 lanes configurable to be 4+1 MIPI and 7 lanes LVDS
  • Supports HS mode (80Mbps to 1.5Gbps) and LS mode (up to 10Mbps) for MIPI mode
  • Support up to 1.5Gbps LVDS with 7:1 serializer
  • Integrated control interface logic to supports PHY Protocol Interface (PPI)
  • Configurable analog characteristics
    • Differential voltage
    • Common mode voltage
    • PLL divider/loop filter
  • Support at-speed loopback BIST
  • 2.5V/1.2V power supply
  • Support GlobalFoundry 55nm LPe process

Block Diagram

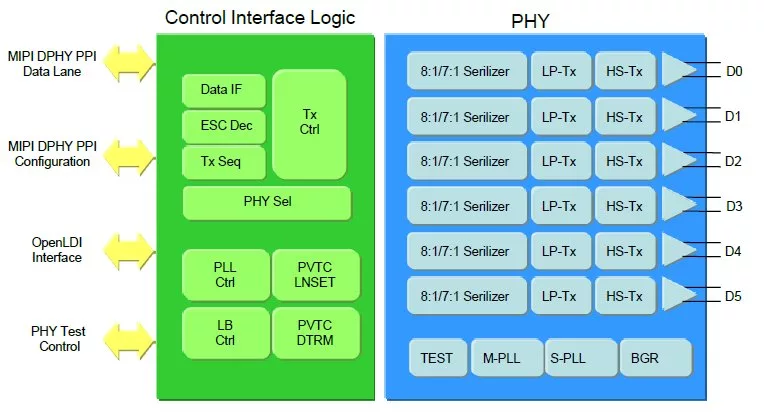

SLIPMPTDCMG55LE block diagram

What’s Included?

  • Verilog RTL or netlist source code of lane control unit
  • Liberty timing models for synthesis and STA
  • Timing constrains for synthesis and physical layout
  • Verilog behavior model of PHY part
  • Physical design database
  • Integration guidelines

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Silicon Options

Foundry Node Process Maturity
GlobalFoundries 55nm LPe —

Specifications

Identity

Part Number
SLIPMPTDCMG55LE
Vendor
Silicon Library Inc.
Type
Silicon IP

Provider

Silicon Library Inc.
HQ: Japan
Silicon Library Inc. (SLI) is a leading provider of high speed interface semiconductor IP and IC solutions. SLI's product offerings included silicon-proven/production-proven eDP/DP TX and RX IP, HDMI TX and RX IP, . SLI offers one-stop shop of both Link and PHY as optimally designed solution. In order to maintain the highest IP quality, SLI staffs its own test team and equipments to verify the IP implementation in actual silicon.
