Vendor: Chips&Media, Inc. Category: Image Conversion

Lossless & Lossy Frame Compression IP

CFrame60 is the Lossless & Lossy Frame Compression Standalone Hardware IP.

Contact Provider Request Datasheet

Overview

CFrame60 is the Lossless & Lossy Frame Compression Standalone Hardware IP.

It offers high flexibility between lossless & lossy compression with a small size.

CFrame60 helps you significantly reduce DRAM bandwidth and power consumption.

Performance

  • 4K60fps@250~450MHz with single core (depending on supported formats).
  • Supports multi cores : up to 8k30/60/120 with dual/quad/octa core.
  • Resolution : up to 7680x4320

Interface

Direct interface(Valid/ready based on-the-fly I/F) and 128bit AXI4

Key features

  • Supports Lossless/Lossy.
  • Lossy compression ratio : 1/2~1/4.
  • Rate control : Image complexity detection (Lossy only).
  • Input order : Picture raster-scan order, and tile raster-scan order.
  • Output order : Picture raster-scan order, tile raster-scan order and block-based order
  • Tile : Only column tile supported (Minimum tile width: 128 / multiple of 64).
  • Low latency : only 1~2 line.
  • Color format : YUV400/420/422/444, RGB and Bayer.
  • Bit-depth : 8,10, 12-bit (optional 14, 16-bit)

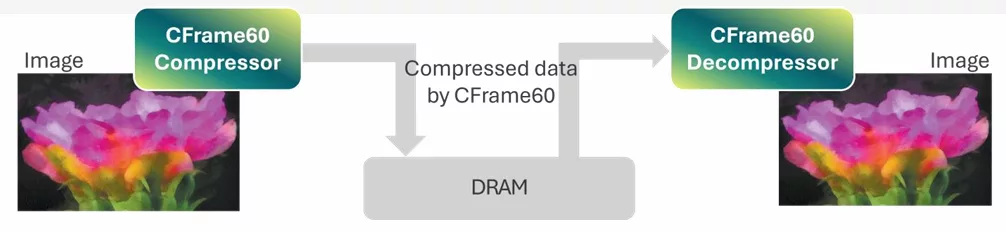

Block Diagram

CFrame60 block diagram

Applications

  • Mobile phones,
  • Digital cameras/camcorders,
  • Video conference systems,
  • Surveillance systems,
  • Automotive systems

What’s Included?

  • Synthesizable RTL source code
  • Test bench
  • C-model executable
  • Datasheet and verification guide
  • Ref-SW for testing and Host control

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Specifications

Identity

Part Number
CFrame60
Vendor
Chips&Media, Inc.

Provider

Chips&Media, Inc.
HQ: Rep of Korea
Chips&Media is a GLOBAL LEADING VIDEO IP (Intellecual Property) Company that develops and designs the professional video IP by implementing video compression algorithm into hardware. Chips&Media’s video processing engines have been developed for a variety of multimedia application such as Mobile phones, Home Consumer Devices, Wired and Wireless Communications, PMP and Tablet PCs. Lately new IT Products have constantly been launched like Smart Phones, Tablet PC and so on, this makes the digital devices to have a variety of multimedia functions. Therefore, Chips&Media has focused on developing video processing engine, which is adapted to its own hardware structures for high speed, high performance and ultra-low power.
