Ka-Band (24 - 33GHz) Zero-IF Transceiver
The ALTUS28TR is a integrated, mmWave, agile transceiver offering high performance and configurability for target applications in…
Overview
The ALTUS28TR is a highly integrated, mmWave, agile transceiver offering high performance and configurability for target applications in an advanced SiGe BiCMOS process technology. This silicon intellectual property (SIP) delivers a versatile combination of high performance and low power consumption.
The ALTUS28TR is a direct conversion transceiver SIP, operating at frequencies around 28GHz. The receiver front-end provides high sensitivity, linearity and wide gain control range distributed throughout the RF chain, providing much room for calibration and optimization. The transmitter front-end exhibits direct upconverter, variable gain driving amplifier and wide gain control range. An integrated power detector is also implemented for external monitoring and control of transmitted power.
Both transmitter and receiver involve LO leakage compensation circuitry that can minimize LO leakage and DC offsets, respectively.
The LO signal at the input is expected to cover the range [8−11]GHz and then multiplied internally to the carrier frequency.
The baseband part of the transceiver consists of two (I/Q channel) fully differential low pass filters with adjustable cut-off and flexible calibration scheme.
The transceiver size is 2.7x2.7mm2 and has been packaged in a 34-ball chip scale package (CSP).
Key features
- Direct up/down conversion
- TX BB input freq. range: DC to 750MHz
- TX/RX mmW freq. range: 24GHz to 33GHz
- LO frequency range: 8GHz to 11GHz
- Typical TX gain: 14dB
- TX gain control range: 50dB
- Typical RX gain: 60dB − 80dB, depending on filter BW
- RX gain control range: 90dB
- TX saturation power: 13dBm
- RX noise figure: 5.5dB
- Single-ended 50Ω input/output impedance
- 4-wire SPI control
- DC power: 540mW in RX, 500mW in TX mode
- Package: 2.7x2.7mm2, CSP package
Block Diagram

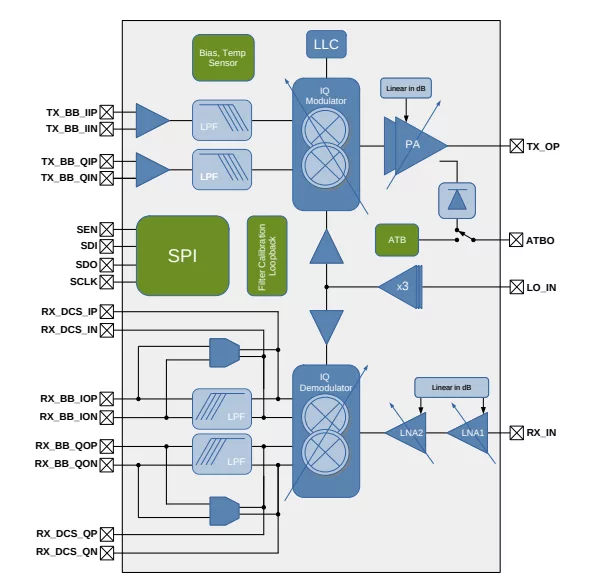

ALTUS28TR block diagram
Applications
- TDD/FDD communication systems
- 5G communication systems
- Satellite communications
- Point-to-point/multipoint Ka-band communications
- RADAR systems
