I2C Master

Avalon compliant I²C Master IP core provides an interface between Nios II processor and an I²C Slave device.

Contact Provider Request Datasheet

Overview

Avalon compliant I²C Master IP core provides an interface between Nios II processor and an I²C Slave device. It can work as a master transmitter or master receiver depending on working mode determined by Nios II processor. The I²C Master IP core incorporates all features required by the latest I²C specification including clock synchronization, arbitration, multi-master systems and fast-speed transmission mode.

The I²C Master IP core is provided as Altera SOPC Builder ready component and integrates easily into any SOPC Builder generated system.

Key features

  • Compatible with Philips I²C standard
  • Two transmission speeds are supported; Normal: 100Kbps Fast: 400Kbps
  • Multi Master Operation
  • Software programmable clock frequency
  • Clock stretching and wait state generation
  • Software programmable acknowledge bit
  • Interrupt or bit-polling driven byte-by-byte data-transfers
  • Arbitration lost interrupt, with automatic transfer cancellation
  • Start/Stop/Repeated Start/Acknowledge generation
  • Start/Stop/Repeated Start detection
  • Bus busy detection
  • Supports 7 and 10bit addressing mode
  • Operates from a wide range of input clock frequencies

Block Diagram

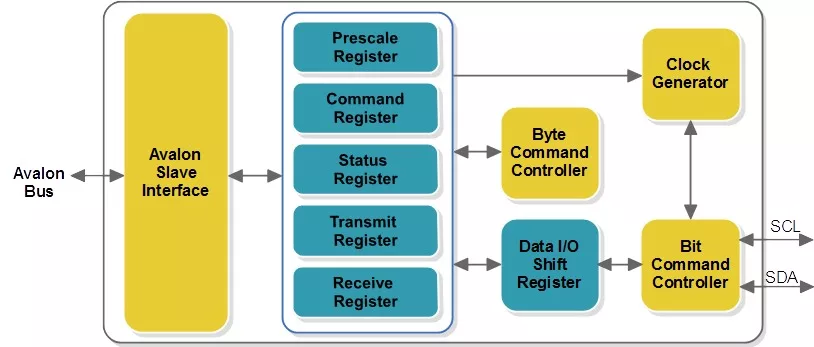

IPRI2CMMFP001 block diagram

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.
