Vendor: HCL Technologies Category: I2C / I3C

I2C Controller

I2C Dual mode IP ( master and slave mode) with APB interface to support the standard I2C Bus Protocol and APB5 Interface on the A…

Contact Provider Request Datasheet

Overview

I2C Dual mode IP ( master and slave mode) with APB interface to support the standard I2C Bus Protocol and APB5 Interface on the Application side. It is an Inter Integration Circuit IP that provides a simple way to talk between integrated circuits by using 4 wires: two SCL (Serial Clock) lines and two SDA (Serial Data) lines. These lines are divided into input and output lines. This IP acts as a transmitter as well as a receiver.

Key features

  •  Configuration: Controller and Target
    •  Programmable via Host interface
    •  Only one configuration will be active at a given time
  •  Different bus modes:
    • a. Standard Mode (0 to 100 kbit/s)
    • b. Fast Mode (<= 400 kbit/s)
    • c. Fast Mode Plus (<= 1000 kbit/s)
    • d. High Speed Mode (<= 3.4 Mbit/s)
  •  Target Addressing: 7bit
  •  Level or Edge Interrupt defined via parameter
  •  Standard APB5 Interface used for Host interface
  •  Separate clock domain for IP Core functionality and Host Interface.
    • a. Parameter used to select same clock or different clocks for IP Core functionality and Host Interface.
  •  Buffers on both Transmit and Receive path with parameterizable depths.
  •  DMA interface for Host to DMA data into/from the IP Buffers.

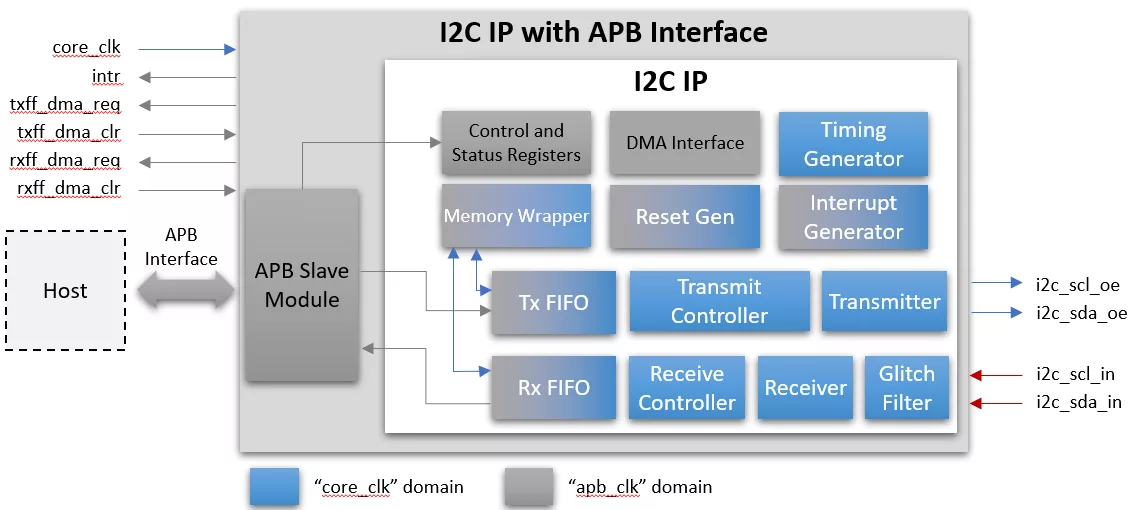

Block Diagram

HCLT_I2C DUAL MODE IP block diagram

Benefits

  •  Dual mode IP (master and slave mode).
  •  Supports different modes of transfer .
  •  Supports DMA interface also .
  • Separate clock domain for IP Core functionality and Host Interface.
  •  I2C can communicate with 128 different slaves since it supports 7 bit addressing mode (2 ^7 = 128).

What’s Included?

  •  Design IP
  •  integration manual
  •  Design Constraints
  •  Lint CDC Waivers

Specifications

Identity

Part Number
HCLT_I2C DUAL MODE IP
Vendor
HCL Technologies
Type
Silicon IP

Provider

HCL Technologies
HQ: India
